LTC3871ELXE-1#PBF - Analog Devices

Description: DC/DC Cntrlr Single-OUT Step Down 550kHz Automotive 48-Pin LQFP EP Tray

Download LTC3871ELXE-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

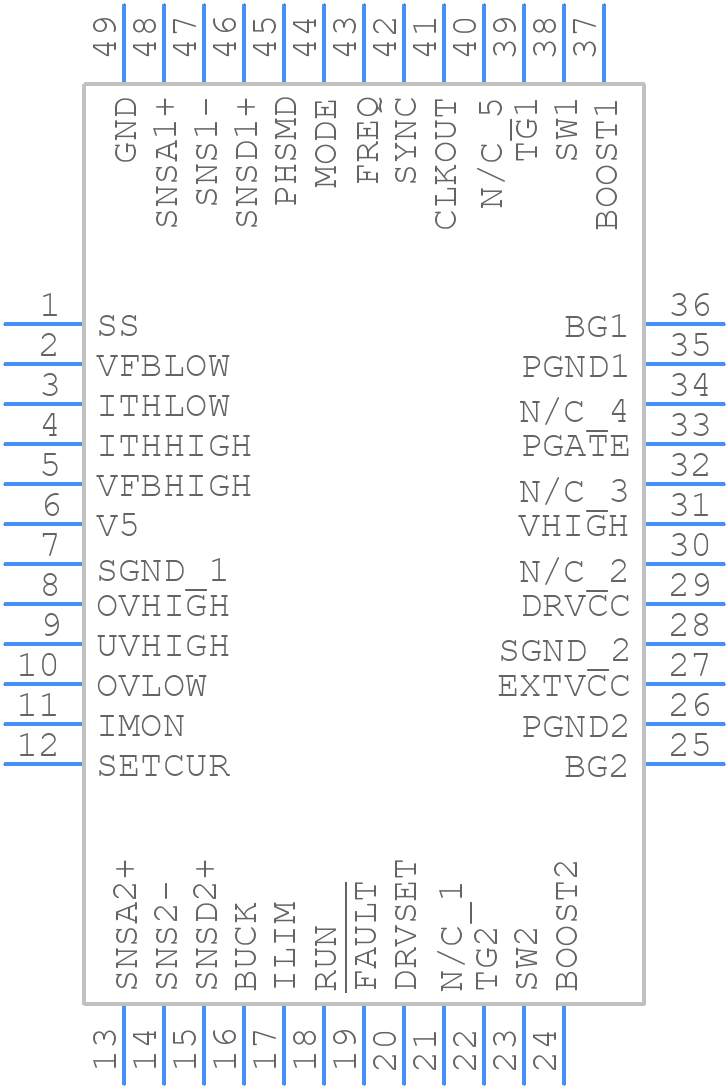

Symbol
LTC3871ELXE-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3871ELXE-1#PBF - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - LXE Package 48-Lead Plastic Exposed Pad LQFP (7mm × 7mm)
click to zoom
3D Models
LTC3871ELXE-1#PBF - Analog Devices - 3D model - Quad Flat Packages - LXE Package 48-Lead Plastic Exposed Pad LQFP (7mm × 7mm)
click to zoom

LTC3871ELXE-1#PBF Details

  • Manufacturer Part Number:

    LTC3871ELXE-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    48

  • Manufacturer Package Code:

    05-08-1832

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-12-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

LTC3871ELXE-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3871 involves keeping the high-frequency switching nodes (e.g., SW, VIN, and VOUT) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer board with a dedicated power plane and a solid ground plane is recommended.
  • When selecting an inductor for the LTC3871, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating of at least 1.5 times the maximum output current, and a DC resistance that is less than 10% of the output impedance. Additionally, choose an inductor with a core material that is suitable for high-frequency operation, such as ferrite or powdered iron.
  • The maximum ambient temperature rating for the LTC3871 is 85°C, but the device can operate up to 125°C with derating. It's essential to consider the thermal design and heat sinking to ensure the device operates within its specified temperature range.
  • The LTC3871 output voltage is set using the FB pin and an external resistor divider network. The FB pin is connected to the output voltage through a resistor divider, and the ratio of the resistors determines the output voltage. The datasheet provides a formula to calculate the resistor values for a specific output voltage.
  • The SYNC/MODE pin on the LTC3871 allows the user to synchronize the switching frequency with an external clock signal or to select between forced continuous conduction mode (FCCM) and pulse-skipping mode (PSM). In FCCM, the converter operates continuously, while in PSM, the converter skips pulses to reduce switching losses at light loads.
