LTC3876IUHF#PBF - Analog Devices

Description: - Controller, DDR Voltage Regulator IC 2 Output 38-QFN (5x7)

Download LTC3876IUHF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

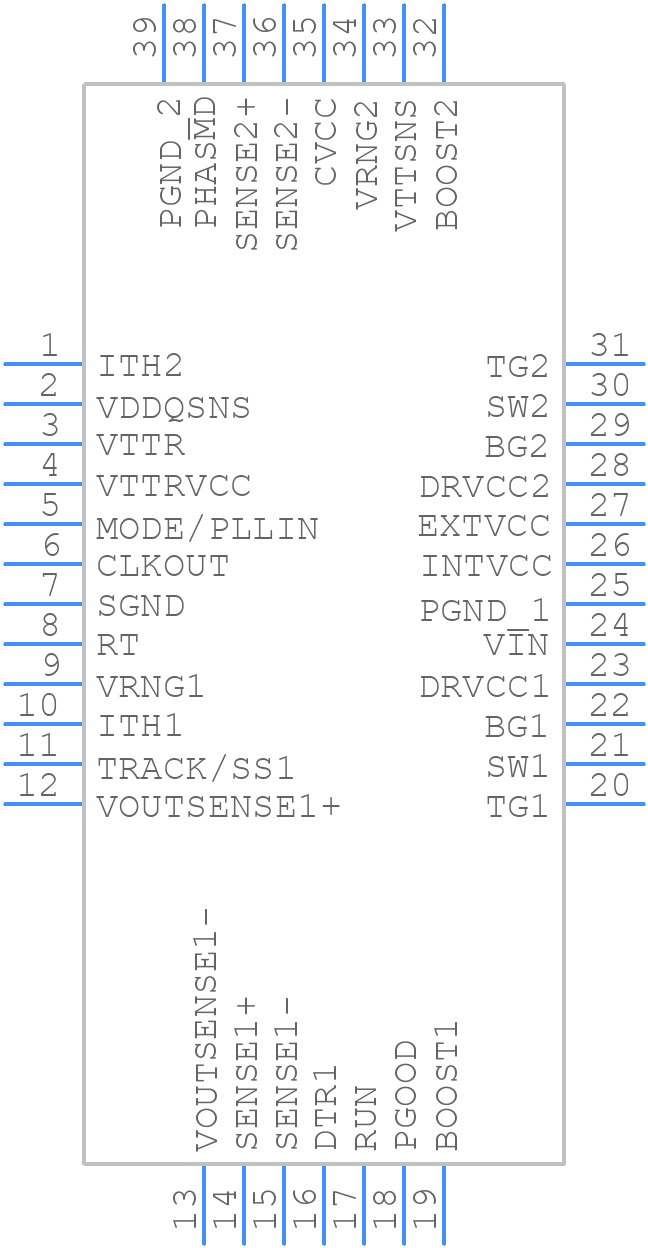

LTC3876IUHF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3876IUHF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 38-Lead Plastic QFN (5mm × 7mm)
click to zoom
3D Models
LTC3876IUHF#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 38-Lead Plastic QFN (5mm × 7mm)
click to zoom

LTC3876IUHF#PBF Details

  • Manufacturer Part Number:

    LTC3876IUHF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    7 X 5 MM, LEAD FREE, PLASTIC, M0-220WHKD, QFN-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1701

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OPERATES IN ADJUSTABLE MODE FROM 1 TO 2.5V
