LTC3890EUH-2#TRPBF - Analog Devices

Description: 60V Low IQ, Dual, 2-Phase Synchronous Step-Down DC/DC Controller

Download LTC3890EUH-2#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

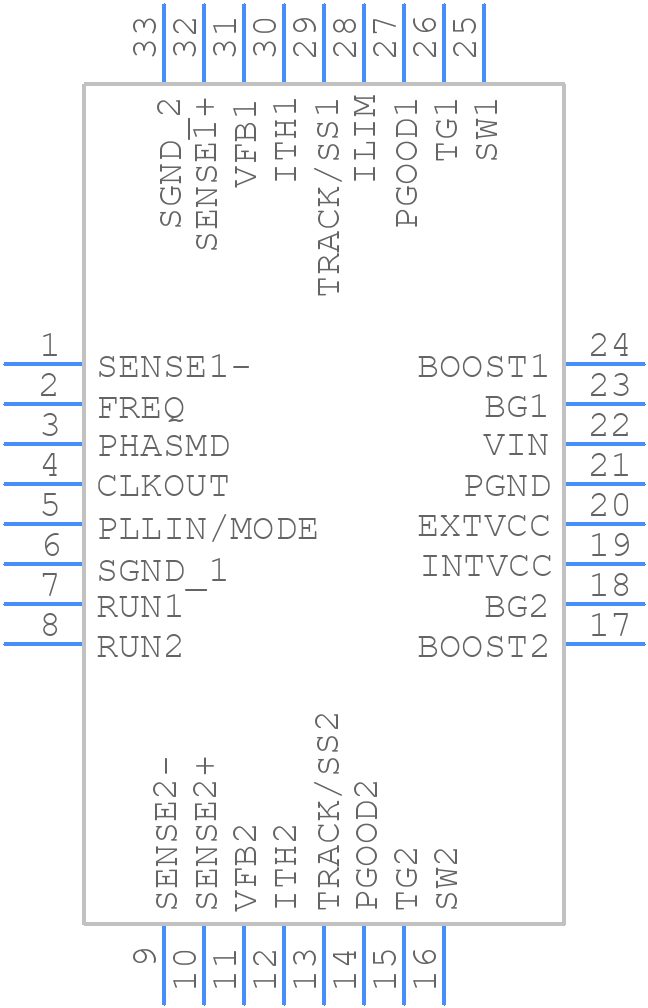

LTC3890EUH-2#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3890EUH-2#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH Package 32-Lead Plastic QFN (5mm × 5mm) (Reference LTC DWG # 05-08-1693 Rev D)
click to zoom
3D Models
LTC3890EUH-2#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - UH Package 32-Lead Plastic QFN (5mm × 5mm) (Reference LTC DWG # 05-08-1693 Rev D)
click to zoom

LTC3890EUH-2#TRPBF Details

  • Manufacturer Part Number:

    LTC3890EUH-2#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    SEATED HT-CALCULATED

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    24 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    585 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC3890EUH-2#TRPBF Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as needed.
  • The datasheet provides guidelines for selecting external components, but it's also recommended to use Analog Devices' online design tools, such as the Power Management Design Tool, to help select the optimal component values for your specific application.
  • The maximum ambient temperature range for the LTC3890EUH-2#TRPBF is -40°C to 125°C. As the ambient temperature increases, the device's performance may be affected, such as reduced efficiency and increased power losses. It's recommended to follow the thermal design guidelines in the datasheet to ensure proper heat dissipation.
  • Analog Devices provides a troubleshooting guide in the datasheet, which covers common issues and their solutions. Additionally, it's recommended to use oscilloscopes and other debugging tools to identify the root cause of the issue and follow the recommended design guidelines to prevent common problems.
  • Analog Devices recommends following the standard soldering and assembly guidelines for QFN packages, such as using a soldering iron with a temperature range of 250°C to 260°C, and ensuring proper cleaning and handling of the device to prevent damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3890EUH-2#TRPBF Overview

Use the download button to access the LTC3890EUH-2#TRPBF schematic symbol, PCB footprint, and 3D model.
