LTC3890MPGN-3#PBF - Analog Devices

Description: 60V Low IQ, Dual, 2-Phase Synchronous Step-Down DC/DC Controller

Download LTC3890MPGN-3#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

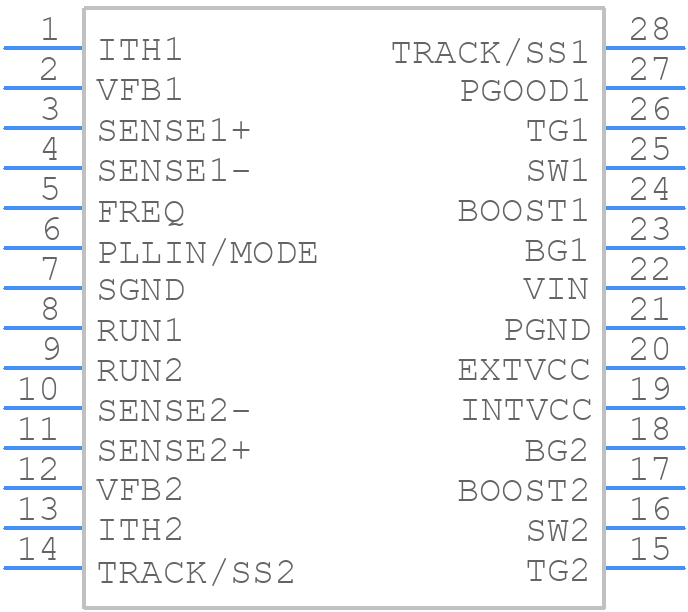

Symbol
LTC3890MPGN-3#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3890MPGN-3#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 28-Lead Plastic SSOP (Narrow .150 Inch) (Reference LTC DWG # 05-08-1641)
click to zoom
3D Models
LTC3890MPGN-3#PBF - Analog Devices - 3D model - Small Outline Packages - GN Package 28-Lead Plastic SSOP (Narrow .150 Inch) (Reference LTC DWG # 05-08-1641)
click to zoom

LTC3890MPGN-3#PBF Details

  • Manufacturer Part Number:

    LTC3890MPGN-3#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1641 (GN28)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE RANGE FROM 0.8 VOLT TO 24 VOLT

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.893 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    24 V

  • Output Voltage-Min:

    0.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    900 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC3890MPGN-3#PBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LTC3890 is -40°C to 125°C, but it can be extended to -55°C to 150°C with some limitations. It's essential to consult the datasheet and application notes for specific temperature-related considerations.
  • To ensure stability, it's crucial to follow the recommended layout and component selection guidelines in the datasheet. Additionally, make sure to use a sufficient output capacitor with a low ESR (Equivalent Series Resistance) and a minimum capacitance of 10uF. Also, avoid using ceramic capacitors with high ESL (Equivalent Series Inductance) as they can cause oscillations.
  • The recommended input capacitor value for the LTC3890 is 10uF to 100uF, with a voltage rating of at least 2x the maximum input voltage. A larger input capacitor can help reduce input voltage ripple and improve overall system stability.
  • Yes, the LTC3890 is designed to handle high currents up to 15A. However, it's essential to ensure proper thermal management, such as using a heat sink and following the recommended layout guidelines, to prevent overheating and maintain reliability.
  • The LTC3890's switching frequency can be programmed using the RT pin. By connecting a resistor (RT) from the RT pin to GND, you can set the switching frequency between 250kHz and 2MHz. Consult the datasheet for the specific resistor values and frequency calculations.
