LTC3899HFE#PBF - Analog Devices

Description: 60V Low IQ, Triple Output, Buck/Buck/Boost Synchronous Controller with PassThru

Download LTC3899HFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

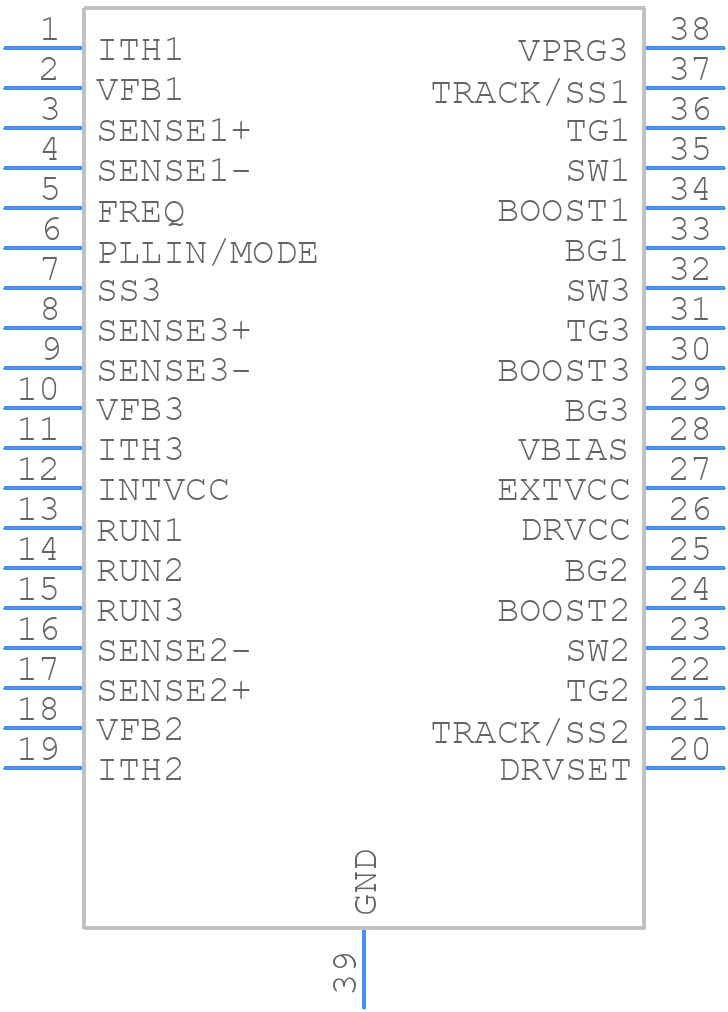

LTC3899HFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3899HFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 38-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1772 Rev C) Exposed Pad Variation AA
click to zoom
3D Models
LTC3899HFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package 38-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1772 Rev C) Exposed Pad Variation AA
click to zoom

LTC3899HFE#PBF Details

  • Manufacturer Part Number:

    LTC3899HFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1772

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 10V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    60 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    900 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LTC3899HFE#PBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LTC3899HFE#PBF is -40°C to 125°C, as specified in the datasheet. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
  • To ensure the stability of the voltage regulator output, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. Additionally, make sure to use a sufficient output capacitor with a low ESR (Equivalent Series Resistance) and a high-quality input capacitor to filter out noise and ripple.
  • The recommended input capacitor value is 10uF to 22uF, with a voltage rating of at least 2x the maximum input voltage. A low-ESR ceramic or film capacitor is recommended, such as the X5R or X7R dielectric type.
  • The output voltage of the LTC3899HFE#PBF can be calculated using the following formula: VOUT = 0.8V x (1 + RFB/RSET), where RFB is the feedback resistor and RSET is the set resistor. The output voltage range is from 0.8V to 5V.
  • The maximum output current capability of the LTC3899HFE#PBF is 2A. However, the output current should be derated based on the ambient temperature and the device's power dissipation to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3899HFE#PBF Overview

Use the download button to access the LTC3899HFE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC38, or try a keyword search, such as Switching Regulator or Controllers
