LTC4002ES8-4.2#PBF - Analog Devices

Description: Standalone Li-Ion Battery Charger SOIC8 Linear Technology LTC4002ES8-4.2#PBF, Battery Charger, 0.095mA, 8-Pin SOIC

Download LTC4002ES8-4.2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

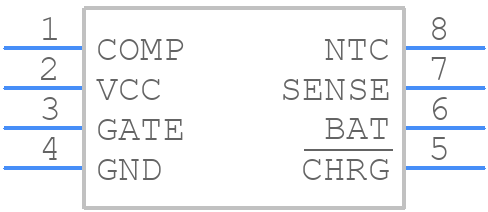

LTC4002ES8-4.2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4002ES8-4.2#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8-8Lead Plastic Small Outline(narrow 0.150 inch)
click to zoom
3D Models
LTC4002ES8-4.2#PBF - Analog Devices - 3D model - Small Outline Packages - S8-8Lead Plastic Small Outline(narrow 0.150 inch)
click to zoom

LTC4002ES8-4.2#PBF Details

  • Manufacturer Part Number:

    LTC4002ES8-4.2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    HTTPS://WWW.ANALOG.COM/EN/PRODUCTS/LTC4002.HTML#PRODUCT-SAMPLEBUY

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    4.7 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC4002ES8-4.2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4002ES8-4.2#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and separating the analog and digital grounds. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the LTC4002ES8-4.2#PBF operates within its SOA, monitor the input voltage, output current, and junction temperature. Make sure the input voltage is within the recommended range, the output current is within the maximum rating, and the junction temperature is below the maximum rating of 125°C.
  • The LTC4002ES8-4.2#PBF has a thermal resistance of 30°C/W. To improve thermal performance, use a heat sink, ensure good airflow, and avoid blocking airflow around the IC. You can also use thermal interface materials to reduce thermal resistance.
  • To troubleshoot issues with the LTC4002ES8-4.2#PBF, start by checking the input voltage, output voltage, and output current. Verify that the input voltage is within the recommended range, and the output voltage is within the expected range. Check for overheating by monitoring the junction temperature. Use an oscilloscope to check for oscillations or noise on the output.
  • To minimize EMI, use a shielded enclosure, keep the input and output cables short, and use twisted pair cables. Use a common-mode choke or ferrite beads to filter the input and output lines. Ensure good grounding and use a low-pass filter to reduce high-frequency noise.
