LTC4231CUD-1#PBF - Analog Devices

Description: Micropower Hot Swap Controller

Download LTC4231CUD-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

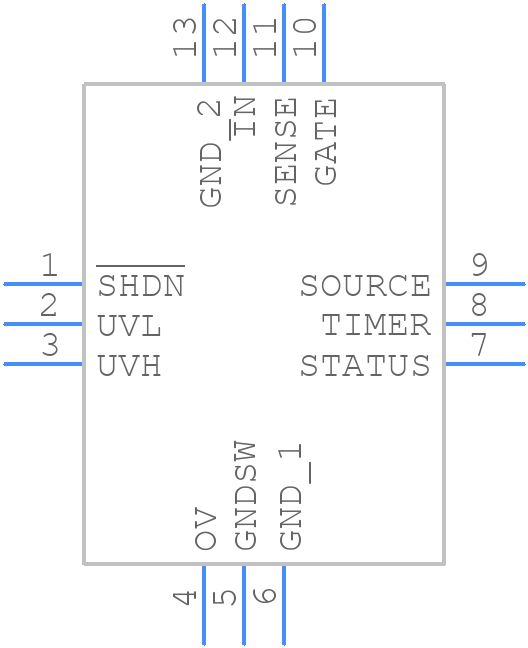

LTC4231CUD-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4231CUD-1#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UD Package 12-Lead Plastic QFN (3mm × 3mm)-1
click to zoom
3D Models
LTC4231CUD-1#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UD Package 12-Lead Plastic QFN (3mm × 3mm)-1
click to zoom

LTC4231CUD-1#PBF Details

  • Manufacturer Part Number:

    LTC4231CUD-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1855

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    7 V

  • JESD-30 Code:

    S-PQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LTC4231CUD-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4231CUD-1#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise and interference.
  • To ensure the LTC4231CUD-1#PBF is operating within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and that the input voltage and output current are within the recommended operating ranges specified in the datasheet.
  • The recommended input capacitor value for the LTC4231CUD-1#PBF is 10uF to 22uF, with a voltage rating of at least 2x the input voltage. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended for optimal performance.
  • To troubleshoot issues with the LTC4231CUD-1#PBF, start by checking the input voltage and output current to ensure they are within the recommended operating ranges. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for noise and oscillations on the output voltage. If the issue persists, consult the datasheet and application notes for further guidance.
  • The LTC4231CUD-1#PBF is rated for operation up to 125°C, but its performance and reliability may be affected at high temperatures. If operating in a high-temperature environment, ensure that the device is properly heat-sinked and that the junction temperature is monitored to prevent overheating.
