LTC4231HMS-1#PBF - Analog Devices

Description: Hot Swap Voltage Controllers Micropower Hot Swap Controller

Download LTC4231HMS-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

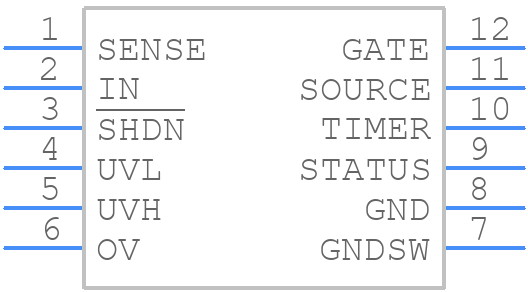

Symbol
LTC4231HMS-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4231HMS-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 12-Lead Plastic MSOP
click to zoom
3D Models
LTC4231HMS-1#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 12-Lead Plastic MSOP
click to zoom

LTC4231HMS-1#PBF Details

  • Manufacturer Part Number:

    LTC4231HMS-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1668

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    7 V

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC4231HMS-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4231HMS-1#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output with additional capacitors if necessary.
  • The maximum ambient temperature range for the LTC4231HMS-1#PBF is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, so it's recommended to operate it within a temperature range of -20°C to 85°C for optimal performance.
  • Yes, the LTC4231HMS-1#PBF is suitable for high-reliability applications. It's manufactured using a high-reliability process and is screened to ensure high reliability. However, it's recommended to follow proper design and manufacturing guidelines to ensure the overall system reliability.
  • To troubleshoot issues with the LTC4231HMS-1#PBF, start by checking the input and output voltages, as well as the current consumption. Use an oscilloscope to check for oscillations or noise on the output. Also, verify that the component values and PCB layout meet the recommended guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4231HMS-1#PBF Overview

Use the download button to access the LTC4231HMS-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC42, or try a keyword search, such as Switching Regulator or Controllers
