A good PCB layout for the LTC4231HMS-1#TRPBF involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a Kelvin connection for the sense pins to minimize voltage drops.
To ensure accurate current sensing, it's essential to use a low-impedance sense resistor (Rs) and to keep the sense traces short and symmetrical. Additionally, the sense pins should be connected to a low-impedance node, and the device should be operated within its specified temperature range.
The maximum allowed voltage drop across the sense resistor (Rs) is 50mV. Exceeding this voltage drop can lead to inaccurate current sensing and potentially damage the device.
The LTC4231HMS-1#TRPBF is rated for operation up to 125°C. However, the device's accuracy and reliability may be affected at high temperatures. It's recommended to derate the device's performance and consider using thermal management techniques to maintain a safe operating temperature.
The LTC4231HMS-1#TRPBF has built-in overcurrent protection (OCP) and overvoltage protection (OVP) features. However, it's still recommended to add external protection components, such as fuses or TVS diodes, to ensure the device's reliability and prevent damage from extreme overcurrent and overvoltage conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTC4231HMS-1#TRPBF Overview

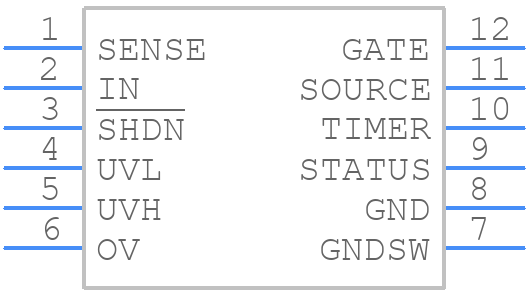

Use the download button to access the LTC4231HMS-1#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC42,
or try a keyword search, such as Switching Regulator or Controllers
