LTC4231HMS-1#WPBF footprint, schematic symbol and 3D model by Analog Devices

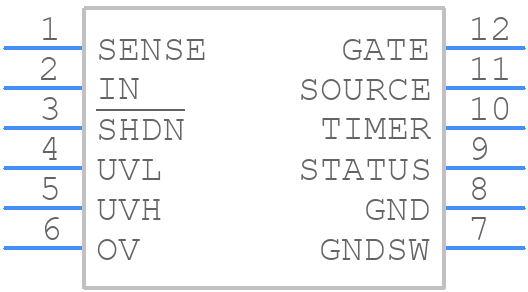

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTC4231HMS-1#WPBF
Part Number LTC4231HMS-1#WPBF
Manufacturer Analog Devices
Pin Count 12
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 12-Lead Plastic MSOP_2021
Released Date Dec 11, 2021
Last Modified Date Nov 19, 2025 6:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LTC4231HMS-1#WPBF Details

Manufacturer Part Number:
LTC4231HMS-1#WPBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MSOP-12
Pin Count:
12
Manufacturer Package Code:
05-08-1668
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Date Of Intro:
2019-08-07
Manufacturer:
Analog Devices Inc
YTEOL:
10
Analog IC - Other Type:
SWITCHING CONTROLLER
Input Voltage-Max:
36 V
Input Voltage-Min:
2.7 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDSO-G12
JESD-609 Code:
e3
Length:
4.039 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
12
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP12,.19
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.1 mm
Surface Mount:
YES
Switcher Configuration:
SINGLE
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
3 mm

LTC4231HMS-1#WPBF Frequently Asked Questions (FAQs)

The maximum operating temperature range for the LTC4231HMS-1#WPBF is -40°C to 125°C.
To ensure proper power-up and configuration, follow the recommended power-up sequence and configuration guidelines outlined in the datasheet, and make sure to meet the minimum input voltage and current requirements.
For optimal performance, follow the recommended PCB layout and design guidelines provided in the datasheet, including keeping sensitive analog signals away from digital signals, using a solid ground plane, and minimizing trace lengths and widths.
To troubleshoot common issues, refer to the datasheet's troubleshooting section, and check for proper power-up sequencing, correct component values, and adequate decoupling. Also, verify that the input voltage and current meet the recommended specifications.
Yes, the LTC4231HMS-1#WPBF is designed for high-reliability and safety-critical applications, but it's essential to follow the recommended design and testing guidelines, and to consult with Analog Devices Inc. for specific requirements and certifications.

Trust Checks

Community Provided

System Verified

Community Approved

LTC4231HMS-1#WPBF Overview

Use the download button to access the LTC4231HMS-1#WPBF schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LTC42, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
