LTC4231HMS-2#TRPBF - Analog Devices

Description: Hot Swap Voltage Controllers Micropower Hot Swap Controller

Download LTC4231HMS-2#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

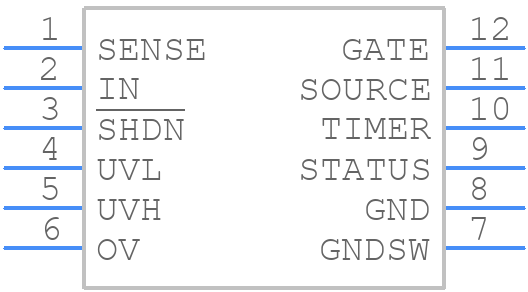

LTC4231HMS-2#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4231HMS-2#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 12-Lead Plastic MSOPS
click to zoom
3D Models
LTC4231HMS-2#TRPBF - Analog Devices - 3D model - Small Outline Packages - 12-Lead Plastic MSOPS
click to zoom

LTC4231HMS-2#TRPBF Details

  • Manufacturer Part Number:

    LTC4231HMS-2#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1668

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER
