LTC4231HMS-2#WPBF - Analog Devices

Description: Hot Swap Voltage Controllers uP Hot Swap Cntr

Download LTC4231HMS-2#WPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

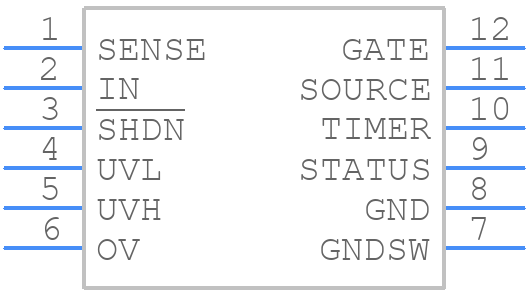

Symbol
LTC4231HMS-2#WPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4231HMS-2#WPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 12-Lead Plastic MSOP
click to zoom
3D Models
LTC4231HMS-2#WPBF - Analog Devices - 3D model - Small Outline Packages - MS Package 12-Lead Plastic MSOP
click to zoom

LTC4231HMS-2#WPBF Details

  • Manufacturer Part Number:

    LTC4231HMS-2#WPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1668

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-08-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC4231HMS-2#WPBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LTC4231HMS-2#WPBF is -40°C to 125°C.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence and configuration guidelines outlined in the datasheet, and make sure to provide a stable input voltage and clock signal.
  • For optimal performance, follow the recommended PCB layout and design guidelines provided in the datasheet, including keeping sensitive analog signals away from digital signals, using a solid ground plane, and minimizing trace lengths and impedance mismatches.
  • To troubleshoot common issues, check the power supply voltage, clock signal, and input/output connections for proper configuration and stability. Also, verify that the device is properly bypassed and decoupled, and that the PCB layout meets the recommended design guidelines.
  • The LTC4231HMS-2#WPBF is a high-performance, low-power, and compact device with a unique feature set, including a high-speed comparator and a low-dropout regulator. Compare the datasheet specifications and features with other devices to determine the best fit for your application.
