A good PCB layout for the LTC4231HUD-2#TRPBF involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
To ensure accurate current sensing, it's essential to use a sense resistor with a low temperature coefficient and to place it close to the device. Additionally, the sense resistor should be connected between the output and the sense pins, and the sense pins should be connected to a low-impedance node to minimize noise.
The LTC4231HUD-2#TRPBF has an operating temperature range of -40°C to 125°C, but it's recommended to derate the device's performance at temperatures above 85°C to ensure reliable operation.
The LTC4231HUD-2#TRPBF has built-in overvoltage and overcurrent protection, but it's still recommended to add external protection components such as TVS diodes and fuses to protect the device from extreme voltage and current surges.
The recommended input capacitor value for the LTC4231HUD-2#TRPBF is 10uF to 22uF, with a voltage rating of at least 2x the input voltage. A larger capacitor value can help to improve the device's transient response and reduce output ripple.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTC4231HUD-2#TRPBF Overview

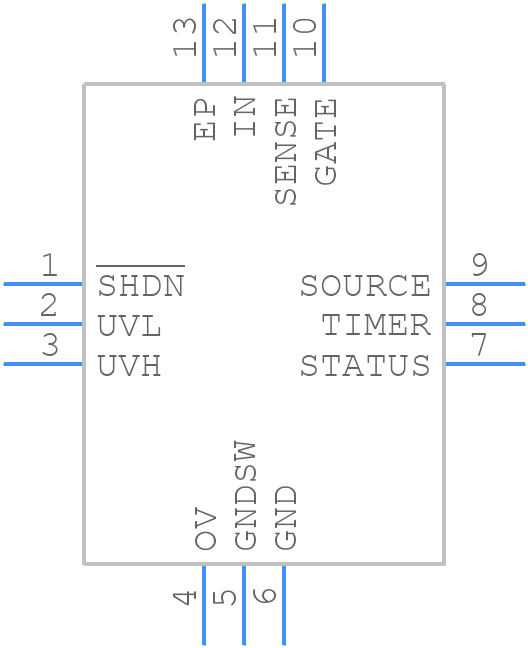

Use the download button to access the LTC4231HUD-2#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC42,
or try a keyword search, such as Switching Regulator or Controllers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
