LTC4231IMS-1#PBF - Analog Devices

Description: Hot Swap Voltage Controllers Micropower Hot Swap Controller with Latchoff

Download LTC4231IMS-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

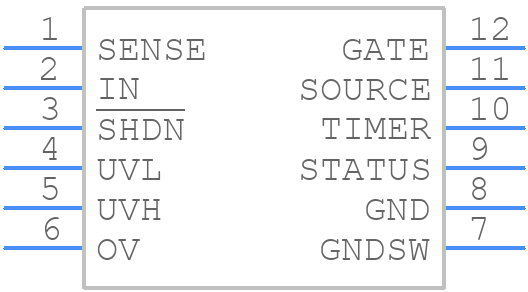

Symbol
LTC4231IMS-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4231IMS-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP12
click to zoom
3D Models
LTC4231IMS-1#PBF - Analog Devices - 3D model - Small Outline Packages - MSOP12
click to zoom

LTC4231IMS-1#PBF Details

  • Manufacturer Part Number:

    LTC4231IMS-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1668

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    7 V

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC4231IMS-1#PBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LTC4231IMS-1#PBF is -40°C to 125°C.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence and configuration guidelines outlined in the datasheet, and make sure to provide a stable input voltage and proper decoupling.
  • For optimal performance, follow the recommended PCB layout and design guidelines provided in the datasheet, including proper placement of decoupling capacitors, signal routing, and thermal management.
  • To troubleshoot common issues, refer to the datasheet's troubleshooting section, and check for proper power-up sequencing, decoupling, and signal integrity. Also, verify that the input voltage and output load are within the recommended specifications.
  • Yes, the LTC4231IMS-1#PBF is suitable for high-reliability and safety-critical applications, but ensure that you follow the recommended design and testing guidelines, and consult with Analog Devices' application engineers for specific guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4231IMS-1#PBF Overview

Use the download button to access the LTC4231IMS-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC42, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
