LTC4265IDE#TRPBF - Analog Devices

Description: Power Switch ICs - POE/LAN IEEE 802.3at High Power PD Interface

Download LTC4265IDE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

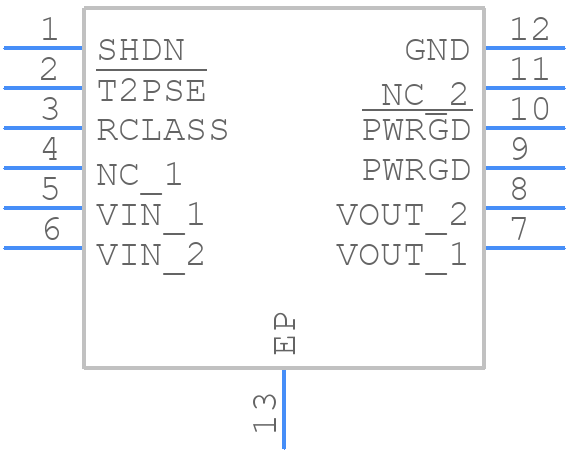

Symbol
LTC4265IDE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4265IDE#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DE/UE Package 12-Lead Plastic DFN (4mm × 3mm)
click to zoom
3D Models
LTC4265IDE#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DE/UE Package 12-Lead Plastic DFN (4mm × 3mm)
click to zoom

LTC4265IDE#TRPBF Details

  • Manufacturer Part Number:

    LTC4265IDE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 3 MM, LEAD FREE, PLASTIC, MO-229WGED, DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1695

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 48V, 54V, 57V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Input Voltage-Max:

    60 V

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Nom:

    3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4265IDE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4265IDE involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input capacitors close to the device. Additionally, it's recommended to use a separate power plane for the output voltage and to keep the output voltage traces away from the input voltage traces.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, it's recommended to add a small capacitor (e.g. 10nF) between the VOUT pin and the GND pin to improve stability. Also, ensure that the input voltage is well-regulated and that the output voltage is properly decoupled.
  • The LTC4265IDE is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to consult the thermal management section in the datasheet and to perform thermal simulations to ensure the device operates within a safe temperature range.
  • Yes, the LTC4265IDE is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using a high-reliability process. However, it's recommended to consult the device's qualification report and to perform additional testing and validation to ensure the device meets the specific requirements of the application.
  • To troubleshoot issues with the LTC4265IDE, start by checking the input voltage, output voltage, and current levels using an oscilloscope or a multimeter. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4265IDE#TRPBF Overview

Use the download button to access the LTC4265IDE#TRPBF schematic symbol, PCB footprint, and 3D model.
