LTC4274AIUHF-4#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC4274AIUHF-4#PBF - PSE, CNTRL, 90W, 1MHZ, 38QFN

Download LTC4274AIUHF-4#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

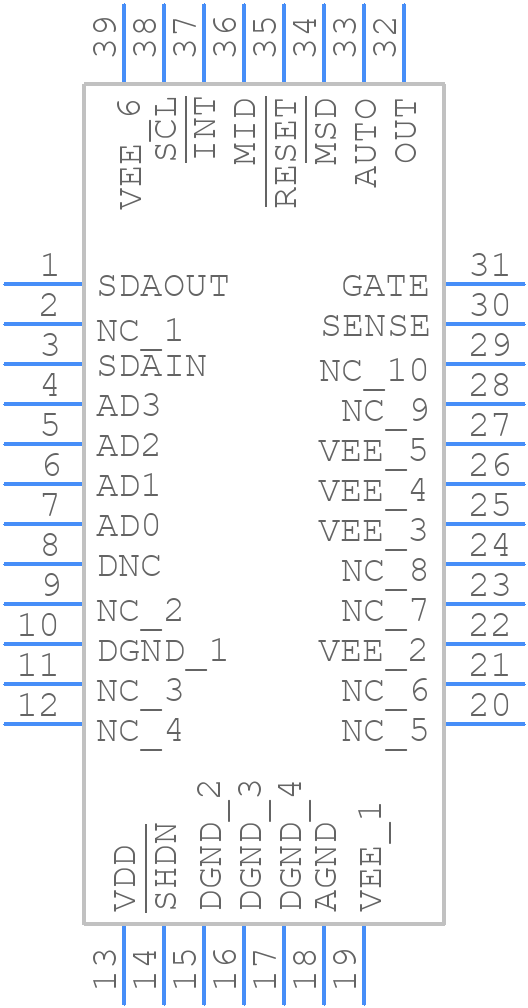

LTC4274AIUHF-4#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4274AIUHF-4#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UHF Package 38-Lead Plastic QFN (5mm × 7mm)
click to zoom
3D Models
LTC4274AIUHF-4#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UHF Package 38-Lead Plastic QFN (5mm × 7mm)
click to zoom

LTC4274AIUHF-4#PBF Details

  • Manufacturer Part Number:

    LTC4274AIUHF-4#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1701

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    R-PQCC-N38

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC38,.27X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    57 V

  • Supply Voltage-Min:

    45 V

  • Supply Voltage-Nom:

    54 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    PSE CONTROLLER

LTC4274AIUHF-4#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the high-current paths.
  • Use a thermal pad or thermal interface material to improve heat transfer between the IC and the PCB. Ensure good airflow around the IC, and consider using a heat sink or thermal management system for high-power applications.
  • The current limit affects the output voltage during overload conditions. If the output current exceeds the current limit, the output voltage will droop or collapse to prevent damage to the IC. Ensure that the output voltage is monitored and controlled to prevent this condition.
  • Use an external OVP circuit, such as a voltage supervisor or a dedicated OVP IC, to monitor the output voltage and shut down the LTC4274 if it exceeds a predetermined threshold.
  • Use a shielded enclosure, keep the input and output cables short, and use EMI filters or common-mode chokes to reduce electromagnetic interference. Ensure that the PCB layout and component placement minimize radiated emissions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4274AIUHF-4#PBF Overview

Use the download button to access the LTC4274AIUHF-4#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC42, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
