LTC4292IUJ#PBF - Analog Devices

Description: Power Switch ICs - POE / LAN PSE Digital Control Ethernet interface

Download LTC4292IUJ#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

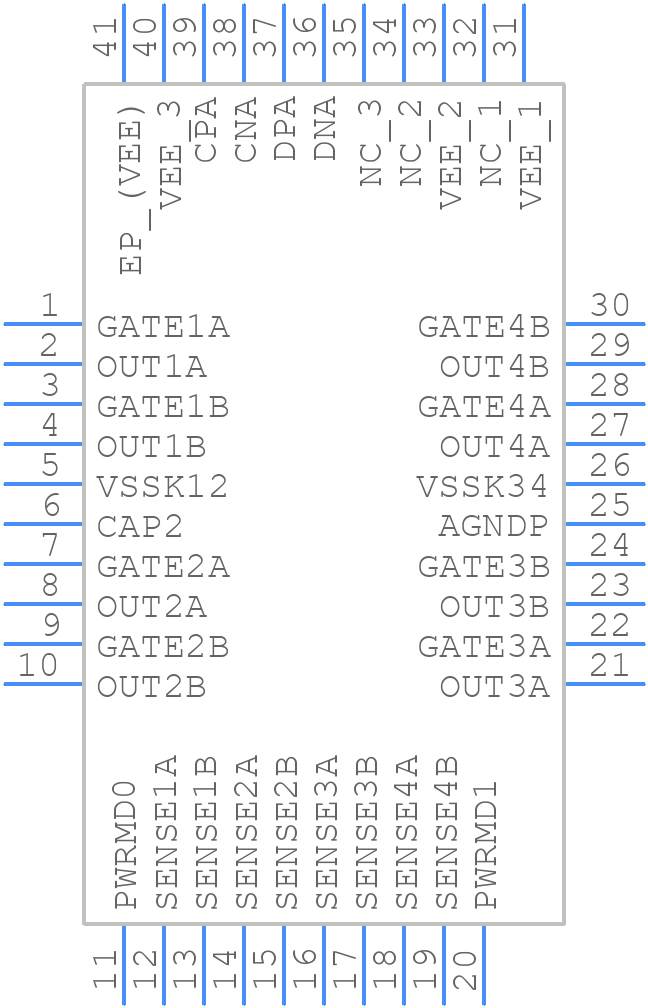

Symbol
LTC4292IUJ#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4292IUJ#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LTC2668CUJ-16#PBF
click to zoom
3D Models
LTC4292IUJ#PBF - Analog Devices - 3D model - Quad Flat No-Lead - LTC2668CUJ-16#PBF
click to zoom

LTC4292IUJ#PBF Details

  • Manufacturer Part Number:

    LTC4292IUJ#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    05-08-1728

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-04-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    57 V

  • Supply Voltage-Min:

    51 V

  • Supply Voltage-Nom:

    54 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    PSE CONTROLLER

LTC4292IUJ#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use short, wide traces for power and ground connections.
  • Use a low-impedance current sense resistor (e.g., 1 mΩ) and place it close to the IC. Ensure the sense resistor is in the same thermal zone as the IC. Use a Kelvin connection to the sense resistor to minimize errors.
  • The maximum allowed voltage on the VCC pin is 5.5V. Exceeding this voltage can damage the IC. Ensure the power supply voltage is regulated and within the recommended operating range.
  • Set the current limit by programming the ILIM pin with a resistor to the VCC pin. The current limit is calculated using the formula: I_LIM = (VCC - 0.5) / R_ILIM. Choose a suitable resistor value to achieve the desired current limit.
  • The FAULT pin is an open-drain output that indicates an overcurrent or overtemperature fault condition. It can be used to trigger a system shutdown or alarm in the event of a fault.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4292IUJ#PBF Overview

Use the download button to access the LTC4292IUJ#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC42, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
