LTC4303CDD#PBF - Analog Devices

Description: Interface - Signal Buffers, Repeaters I2C Bus Buffer with Stuck Bus Recovery

Download LTC4303CDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

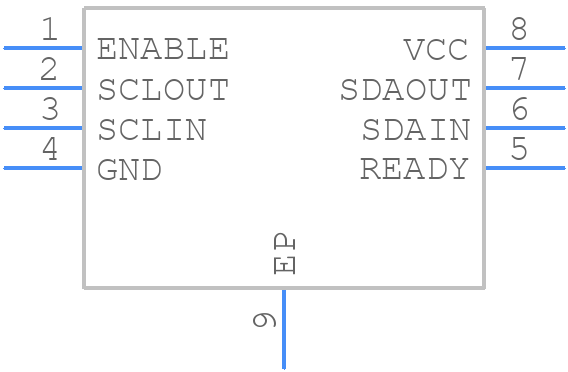

Symbol
LTC4303CDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4303CDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LTC4303CDD#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)
click to zoom

LTC4303CDD#PBF Details

  • Manufacturer Part Number:

    LTC4303CDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    BUS BUFFERS

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4303CDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4303CDD involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure reliable hot swap operation, make sure to follow the recommended circuit layout and component selection guidelines in the datasheet. Additionally, use a suitable hot swap controller, such as the LTC4261, and ensure that the power supply is stable and well-regulated.
  • The maximum cable length supported by the LTC4303CDD depends on the specific application and the type of cable used. As a general rule, the device can support cable lengths up to 10 meters, but this may vary depending on the signal frequency and the cable's capacitance and attenuation characteristics.
  • The LTC4303CDD is designed to operate with a standard 3.3V or 5V supply voltage. While it may be possible to use the device with a non-standard voltage supply, this is not recommended and may affect the device's performance and reliability. Consult with Analog Devices Inc. for specific guidance on using the device with non-standard voltage supplies.
  • To troubleshoot issues with the LTC4303CDD, start by checking the power supply voltage and ensuring that it is within the recommended range. Verify that the device is properly connected and that the input and output signals are correct. Use an oscilloscope to check for signal integrity and noise. Consult the datasheet and application notes for specific troubleshooting guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4303CDD#PBF Overview

Use the download button to access the LTC4303CDD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
