LTC4303IMS8#PBF - Analog Devices

Description: Interface - Signal Buffers, Repeaters I2C Bus Buffer with Stuck Bus Recovery

Download LTC4303IMS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

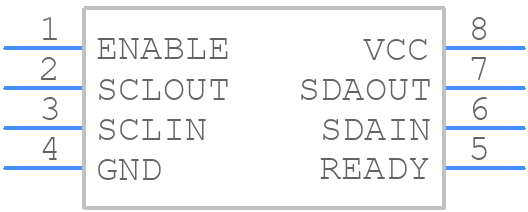

Symbol
LTC4303IMS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4303IMS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 8-Lead Plastic MSOP
click to zoom
3D Models
LTC4303IMS8#PBF - Analog Devices - 3D model - Small Outline Packages - MS8 8-Lead Plastic MSOP
click to zoom

LTC4303IMS8#PBF Details

  • Manufacturer Part Number:

    LTC4303IMS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    BUS BUFFERS

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4303IMS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4303 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure reliable hot swap operation, make sure to follow the recommended circuit layout and component selection guidelines in the datasheet. Additionally, use a suitable hot swap controller, such as the LTC4261, and ensure that the power supply is stable and well-regulated.
  • The LTC4303 is rated for operation from -40°C to 85°C. However, the device may still function outside this range, but with reduced performance and reliability.
  • While the LTC4303 is specified for 3.3V or 5V operation, it can be used with non-standard voltage supplies with some limitations. However, the device's performance and functionality may be affected, and additional circuitry may be required to ensure reliable operation.
  • To troubleshoot issues with the LTC4303, start by verifying the power supply voltage and ensuring that the device is properly connected. Check the datasheet for recommended circuit configurations and component values. Use a logic analyzer or oscilloscope to monitor the device's signals and identify any anomalies.
