LTC4307IMS8#PBF - Analog Devices

Description: Interface - Signal Buffers, Repeaters L Offset Hot Swappable 2-Wire Bus Buf w

Download LTC4307IMS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

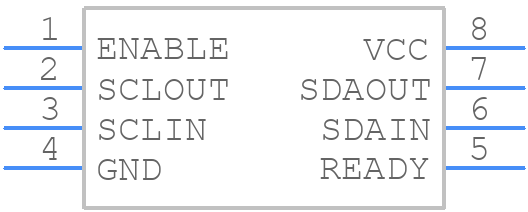

LTC4307IMS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4307IMS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Plastic MSOP-ren1
click to zoom
3D Models
LTC4307IMS8#PBF - Analog Devices - 3D model - Small Outline Packages - 8-Lead Plastic MSOP-ren1
click to zoom

LTC4307IMS8#PBF Details

  • Manufacturer Part Number:

    LTC4307IMS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4307IMS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4307IMS8 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
  • To ensure reliable hot swap operation, make sure to follow the recommended hot swap circuit topology, use a suitable external FET, and ensure that the voltage on the VS pin is within the recommended range during hot swap events.
  • The maximum allowed voltage on the VS pin during hot swap is 7V. Exceeding this voltage may damage the device.
  • While the LTC4307IMS8 is designed to work with standard voltage supplies (e.g., 3.3V, 5V), it can be used with non-standard voltage supplies with proper design considerations and component selection. However, this may require additional testing and validation.
  • To troubleshoot issues with the LTC4307IMS8, start by checking the power supply voltage, ensuring that the input and output capacitors are properly connected, and verifying that the hot swap circuit is functioning correctly. Use an oscilloscope to monitor the voltage and current waveforms to identify any anomalies.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4307IMS8#PBF Overview

Use the download button to access the LTC4307IMS8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Peripheral Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
