LTC4307IMS8-1#PBF - Analog Devices

Description: Interface - Signal Buffers, Repeaters Low Offset I2C Bus Buffer

Download LTC4307IMS8-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

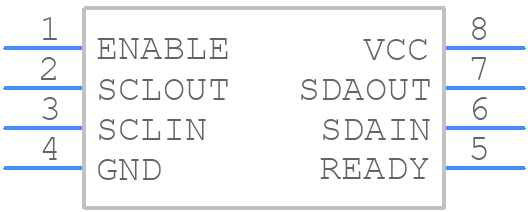

Symbol
LTC4307IMS8-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4307IMS8-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom
3D Models
LTC4307IMS8-1#PBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom

LTC4307IMS8-1#PBF Details

  • Manufacturer Part Number:

    LTC4307IMS8-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Built-in Protections:

    UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    0.05 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4307IMS8-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4307 involves keeping the hot swap FETs close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the FETs. Additionally, it's recommended to use a separate power plane for the hot swap voltage and to decouple the power supply with a 10uF capacitor.
  • To ensure reliable hot swap operation, make sure to follow the recommended PCB layout, use a suitable hot swap FET with a low RDS(ON) and high current rating, and ensure that the voltage on the VCC pin is stable and within the recommended range. Additionally, it's recommended to add a 1kΩ resistor in series with the EN pin to prevent accidental turn-on during hot swap.
  • The LTC4307 is designed to handle up to 10A of continuous current, but the actual current rating depends on the specific application and the hot swap FET used. It's recommended to check the datasheet of the hot swap FET and to perform thermal analysis to ensure that the system can handle the maximum expected current.
  • The LTC4307 is designed to operate with a 3.3V or 5V supply voltage, but it can be used with other voltage supplies with some limitations. The device can operate with a supply voltage as low as 2.7V, but the hot swap functionality may not work correctly. It's recommended to check the datasheet and to perform testing to ensure that the device operates correctly with the desired supply voltage.
  • To troubleshoot issues with the LTC4307, start by checking the power supply voltage and ensuring that it is within the recommended range. Then, check the EN pin and ensure that it is properly driven. If the issue persists, check the hot swap FET and ensure that it is properly connected and functioning correctly. Finally, check the PCB layout and ensure that it follows the recommended layout guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4307IMS8-1#PBF Overview

Use the download button to access the LTC4307IMS8-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Peripheral Drivers
