LTC4313IDD-3#PBF - Analog Devices

Description: Interface - Signal Buffers, Repeaters 2-Wire Bus Buffer with High Noise Margin

Download LTC4313IDD-3#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

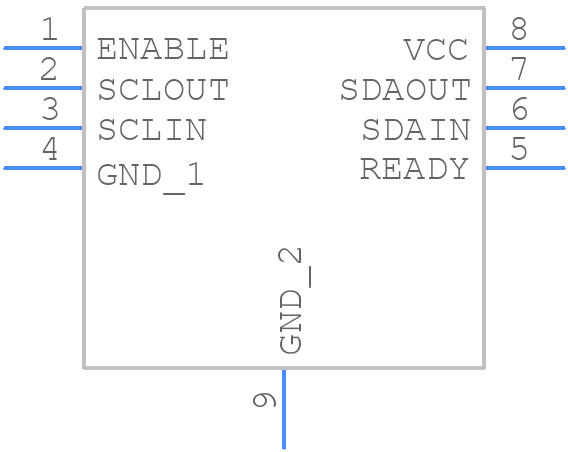

LTC4313IDD-3#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4313IDD-3#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LTC4313IDD-3#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)
click to zoom

LTC4313IDD-3#PBF Details

  • Manufacturer Part Number:

    LTC4313IDD-3#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.9 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4313IDD-3#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4313IDD-3#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • The LTC4313IDD-3#PBF requires a single 3.3V power supply, and it's recommended to use a low-noise, low-dropout regulator to power the device. The power sequencing requirements involve powering up the device in the following order: VCC, then VREF, and finally the digital inputs. It's also recommended to add decoupling capacitors close to the device to filter out noise.
  • The LTC4313IDD-3#PBF has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for optimal performance. To ensure proper heat dissipation, use a thermal pad or a heat sink, and ensure good airflow around the device. Additionally, use a PCB with a thermal relief pattern to help dissipate heat.
  • To troubleshoot common issues with the LTC4313IDD-3#PBF, start by checking the power supply and ensuring it's clean and stable. Next, verify that the device is properly configured and that the input and output capacitors are properly sized. Use an oscilloscope to check for oscillations or instability, and ensure that the device is properly decoupled. If issues persist, consult the datasheet and application notes for further guidance.
  • The LTC4313IDD-3#PBF is designed to meet EMI and EMC regulatory standards, but it's still important to follow good design practices to ensure compliance. Use a shielded enclosure, keep the device away from antennas and other EMI sources, and use EMI filters or shielding on the PCB. Additionally, ensure that the device is properly grounded and that the power supply is clean and stable.
