LTC4316CMS#PBF - Analog Devices

Description: Interface - Specialized 1x I2C/SMBus Address Translator

Download LTC4316CMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

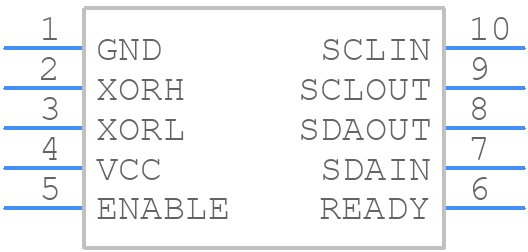

LTC4316CMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4316CMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Plastic MSOP
click to zoom
3D Models
LTC4316CMS#PBF - Analog Devices - 3D model - Small Outline Packages - 10-Lead Plastic MSOP
click to zoom

LTC4316CMS#PBF Details

  • Manufacturer Part Number:

    LTC4316CMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC4316CMS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4316CMS involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
  • To ensure stability, make sure to follow the recommended component values and PCB layout, and add a small capacitor (e.g., 10nF) between the VCC and GND pins to filter out high-frequency noise.
  • The maximum input voltage for the LTC4316CMS is 5.5V, but it's recommended to keep the input voltage below 5V to ensure reliable operation and prevent damage to the device.
  • The LTC4316CMS is rated for operation up to 125°C, but it's recommended to derate the device's performance and consider thermal management strategies (e.g., heat sinks, thermal interfaces) for high-temperature applications.
  • To troubleshoot issues, start by verifying the power supply voltage, checking for proper component values and PCB layout, and using an oscilloscope to inspect the output waveform and identify any anomalies or noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4316CMS#PBF Overview

Use the download button to access the LTC4316CMS#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Other Interface ICs
