LTC4317IDHC#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC4317IDHC#PBF - ADDRESS TRANSLATOR, I2C/SMBUS, 5.5V, DFN

Download LTC4317IDHC#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

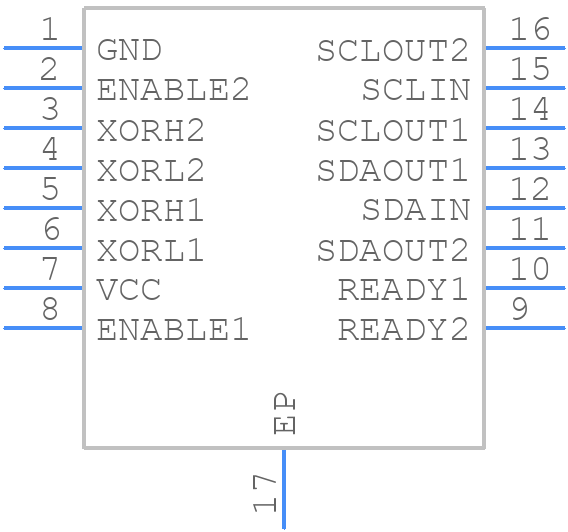

LTC4317IDHC#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4317IDHC#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DHC Package 16-Lead Plastic DFN (5mm × 3mm)
click to zoom
3D Models
LTC4317IDHC#PBF - Analog Devices - 3D model - Small Outline No-lead - DHC Package 16-Lead Plastic DFN (5mm × 3mm)
click to zoom

LTC4317IDHC#PBF Details

  • Manufacturer Part Number:

    LTC4317IDHC#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 3 MM, LEAD FREE, PLASTIC, MO-229WJED-1, DFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1706

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC16,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC4317IDHC#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4317IDHC#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
  • To ensure stability, make sure to follow the recommended component values and PCB layout, and add a small capacitor (e.g., 10nF) between the VCC and GND pins to filter out high-frequency noise.
  • The maximum input voltage for the LTC4317IDHC#PBF is 5.5V, but it's recommended to keep the input voltage below 5V to ensure reliable operation and prevent damage to the device.
  • The LTC4317IDHC#PBF is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the device's specifications and consider using a heat sink or thermal management system in high-temperature applications.
  • To troubleshoot issues with the LTC4317IDHC#PBF, check the input voltage, output voltage, and current consumption using an oscilloscope or multimeter. Verify that the component values and PCB layout match the recommended design, and check for any signs of overheating or physical damage to the device.
