LTC4358IFE#PBF - Analog Devices

Description: OR Controller N-Channel Single-OUT 0.04Ohm Automotive 16-Pin TSSOP EP

Download LTC4358IFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

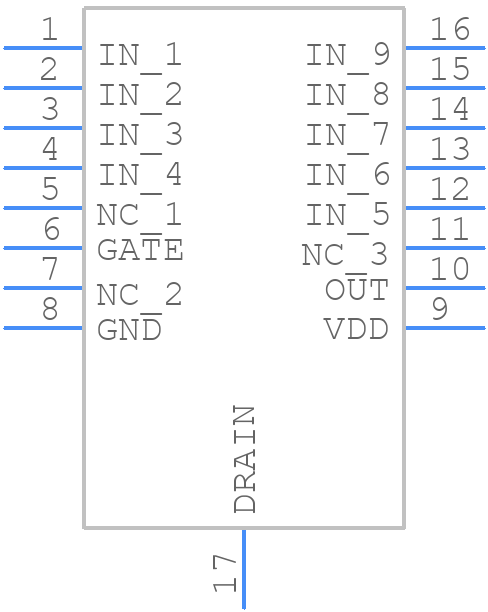

LTC4358IFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4358IFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package
click to zoom
3D Models
LTC4358IFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package
click to zoom

LTC4358IFE#PBF Details

  • Manufacturer Part Number:

    LTC4358IFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1663 (BC)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    26.5 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LTC4358IFE#PBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LTC4358IFE is -40°C to 125°C.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence and configuration guidelines outlined in the datasheet, including setting the EN pin high, configuring the FAULT pin, and setting the UVLO threshold.
  • For optimal performance and thermal management, follow the recommended PCB layout guidelines in the datasheet, including using a solid ground plane, minimizing trace lengths, and providing adequate thermal relief. Additionally, ensure proper heat sinking and thermal management to prevent overheating.
  • To troubleshoot and debug issues, use a systematic approach to identify the problem, including checking power supply voltages, signal integrity, and configuration settings. Use oscilloscopes, logic analyzers, and other diagnostic tools to identify and isolate issues.
  • To ensure EMI and EMC compliance, follow proper PCB layout and design guidelines, use shielding and filtering as necessary, and ensure that the device is properly configured and powered. Additionally, consider using EMI filters and shielding to minimize electromagnetic interference.
