- Part Number LTC4450AV#TRMPBF
- Manufacturer Analog Devices
- Pin Count 18
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - LQFN Package 16-Lead (2mm × 3mm × 0.75mm) (Reference LTC DWG # 05-08-1683 Rev Ø)
- Released Date Jun 4, 2023
- Last Modified Date Nov 5, 2025 9:41 PM UTC
- Pinout / Pin List Click Here (Member Only)
LTC4450AV#TRMPBF Details
-
Manufacturer Part Number:
LTC4450AV#TRMPBF
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-16
-
Pin Count:
16
-
Manufacturer Package Code:
05-08-1693
-
ECCN Code:
EAR99
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
8.5
LTC4450AV#TRMPBF Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other, and use a common mode choke to filter the input.
-
The LTC4450AV requires a bias voltage of 3.3V to 5V on the VCC pin. Ensure the bias voltage is stable and noise-free, and decouple the VCC pin with a 10uF capacitor to ground.
-
The maximum input voltage that can be applied to the LTC4450AV is 5.5V. Exceeding this voltage may damage the device.
-
Use a current limiting resistor in series with the input to limit the current to 100mA or less. Additionally, consider using a fuse or a polyfuse to protect against overcurrent conditions.
-
The LTC4450AV has a thermal derating of 6.4mW/°C above 25°C. This means that the device's power dissipation must be reduced as the temperature increases to prevent overheating and ensure reliable operation.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
LTC4450AV#TRMPBF Overview

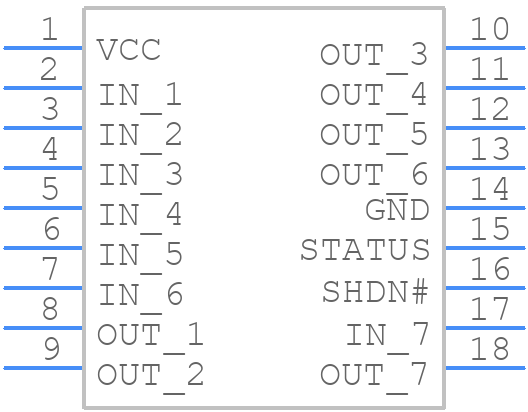

Use the download button to access the LTC4450AV#TRMPBF schematic symbol, PCB footprint, and 3D model.
