- Part Number LTC4450AV#TRPBF
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - LTC4451AV#TRMPBF-6
- Released Date Dec 24, 2021
- Last Modified Date Nov 5, 2025 9:41 PM UTC
- Pinout / Pin List Click Here (Member Only)
LTC4450AV#TRPBF Details
-
Manufacturer Part Number:
LTC4450AV#TRPBF
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-16
-
Pin Count:
16
-
Manufacturer Package Code:
05-08-1693
-
ECCN Code:
EAR99
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
8.5
LTC4450AV#TRPBF Frequently Asked Questions (FAQs)
-
A good PCB layout for the LTC4450AV involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply bypass capacitors. Additionally, it's recommended to use a Kelvin connection for the sense pins to minimize noise.
-
To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply VCC first, followed by the input voltage. Also, ensure that the EN pin is high during power-up and that the device is properly bypassed with capacitors.
-
The maximum allowed voltage on the SENSE pins is VCC + 0.3V. To protect them from overvoltage, use a voltage clamp or a resistive divider to limit the voltage to within the allowed range. Additionally, consider using a TVS diode or a zener diode to absorb any voltage spikes.
-
The maximum current that the LTC4450AV can handle depends on the package type and the thermal environment. Use the thermal resistance and maximum junction temperature ratings to calculate the maximum current. For the TRPBF package, the maximum current is approximately 1.5A. Ensure proper heat sinking and thermal management to prevent overheating.
-
The recommended input voltage range for the LTC4450AV is 2.7V to 5.5V. Operating outside this range may affect the device's performance, including accuracy, linearity, and power consumption. Ensure that the input voltage is within the recommended range for optimal performance.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
LTC4450AV#TRPBF Overview

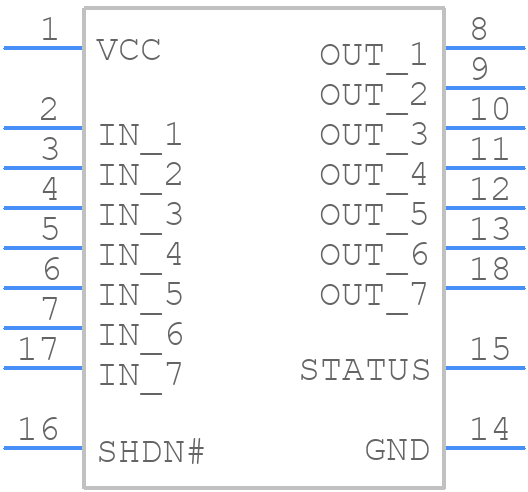

Use the download button to access the LTC4450AV#TRPBF schematic symbol, PCB footprint, and 3D model.
