LTC4451AV#TRMPBF - Analog Devices

Description: Schottky Diodes & Rectifiers 40V/8A Monolithic (NFET) Ideal Diodes

Download LTC4451AV#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

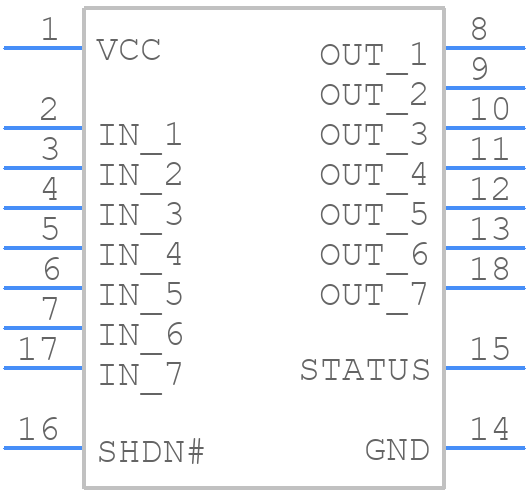

LTC4451AV#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4451AV#TRMPBF - Analog Devices PCB footprint - Other - Other - LTC4451AV#TRMPBF-6
click to zoom
3D Models
LTC4451AV#TRMPBF - Analog Devices - 3D model - Other - LTC4451AV#TRMPBF-6
click to zoom

LTC4451AV#TRMPBF Details

  • Manufacturer Part Number:

    LTC4451AV#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1683

  • ECCN Code:

    EAR99

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • Drain-source On Resistance-Max:

    0.045 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-XTCC-N16

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Number of Elements:

    1

  • Number of Terminals:

    16

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    TRIPLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    GALLIUM NITRIDE

LTC4451AV#TRMPBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other, and use a common mode choke to filter the input.
  • The LTC4451AV requires a bias voltage of 3.3V to 5V on the VCC pin. Ensure the bias voltage is stable and noise-free, and decouple the VCC pin with a 10uF capacitor to ground.
  • The maximum input voltage that can be applied to the LTC4451AV is 5.5V. Exceeding this voltage may damage the device.
  • Use a current limiting resistor in series with the input to limit the current to 100mA or less. Additionally, consider using a fuse or a polyfuse to protect against overcurrent conditions.
  • The LTC4451AV has a thermal derating of 6.4mW/°C above 25°C. This means that the device's power dissipation must be reduced as the temperature increases to prevent overheating and ensure reliable operation.
