LTC5533EDE#PBF - Analog Devices

Description: IC RF DETECT 300MHZ-11GHZ 12DFN

Download LTC5533EDE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

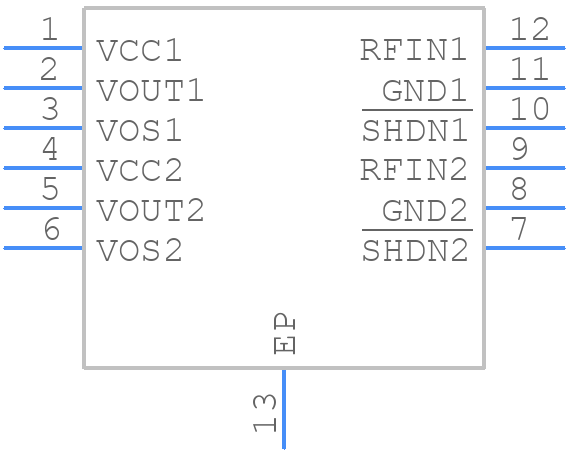

Symbol
LTC5533EDE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC5533EDE#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - dfn12
click to zoom
3D Models
LTC5533EDE#PBF - Analog Devices - 3D model - Small Outline No-lead - dfn12
click to zoom

LTC5533EDE#PBF Details

  • Manufacturer Part Number:

    LTC5533EDE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 3 MM, PLASTIC, MO-229, DFN, DE-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1695

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    12 dBm

  • Input Power-Min (CW):

    -32 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    11000 MHz

  • Operating Frequency-Min:

    300 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    POSITIVE

  • Package Body Material:

    PLASTIC/EPOXY

  • RF/Microwave Device Type:

    LINEAR DETECTOR

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

LTC5533EDE#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • Ensure that the output capacitor is properly sized and placed close to the output pin. Also, make sure the input capacitor is properly bypassed to ground and the input voltage is within the recommended range.
  • The maximum input voltage is 5.5V, but it's recommended to keep it below 5V to ensure reliable operation and minimize power consumption.
  • The LTC5533EDE is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. Ensure proper thermal management and consider derating the device for high-temperature applications.
  • Use an oscilloscope to monitor the input and output waveforms. Check for proper power supply decoupling, ensure the input voltage is within the recommended range, and verify the output capacitor is properly sized and placed.
