LTC5549IUDB#TRMPBF - Analog Devices

Description: RF Mixer 2GHz to 14GHz Microwave Mixer with Integrated LO Frequency Doubler

Download LTC5549IUDB#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

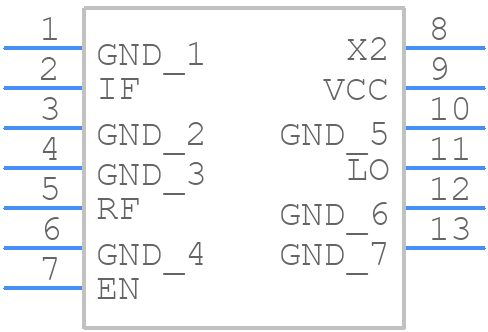

LTC5549IUDB#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC5549IUDB#TRMPBF - Analog Devices PCB footprint - Other - Other - UDB Package
click to zoom
3D Models
LTC5549IUDB#TRMPBF - Analog Devices - 3D model - Other - UDB Package
click to zoom

LTC5549IUDB#TRMPBF Details

  • Manufacturer Part Number:

    LTC5549IUDB#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1985

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    14000 MHz

  • Operating Frequency-Min:

    2000 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Terminal Finish:

    Matte Tin (Sn)

LTC5549IUDB#TRMPBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling.
  • Ensure the VCC pin is connected to a stable 3.3V or 5V power supply, and the VEE pin is connected to a stable -3.3V or -5V power supply. Also, ensure the input voltage is within the recommended range.
  • The maximum input power is limited by the device's thermal characteristics. Ensure the input power is limited to 10dBm or less to prevent overheating.
  • Use a low-noise power supply, minimize the length of the input and output traces, and use a ground plane to reduce electromagnetic interference (EMI).
  • The LTC5549IUDB is rated for operation up to 125°C. However, ensure proper thermal management and derate the device's performance accordingly.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC5549IUDB#TRMPBF Overview

Use the download button to access the LTC5549IUDB#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC55, or try a keyword search, such as RF/Microwave Mixers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
