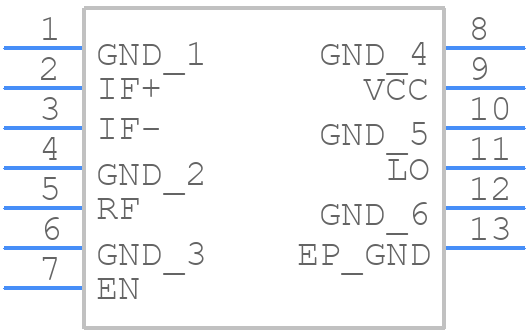

LTC5552IUDB#TRMPBF - Analog Devices

LTC5552IUDB#TRMPBF Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the LTC5552IUDB?
  A good PCB layout for the LTC5552IUDB involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply bypass capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
• How do I ensure the LTC5552IUDB is properly powered up and powered down?
  To ensure proper power-up and power-down, the EN pin should be driven high after the input voltage has reached its nominal value, and the input voltage should be stable before the EN pin is driven low. A soft-start circuit can be used to control the power-up sequence.
• What is the maximum allowable capacitance for the output filter capacitor?
  The maximum allowable capacitance for the output filter capacitor depends on the specific application, but a general guideline is to keep it below 10uF to avoid stability issues. A smaller capacitor value can help improve transient response and reduce output voltage ripple.
• How do I optimize the feedback network for the LTC5552IUDB?
  The feedback network should be optimized for the specific application by selecting the correct resistor and capacitor values to achieve the desired gain and bandwidth. A good starting point is to use the recommended values in the datasheet and then adjust them based on the specific application requirements.
• What is the recommended thermal management strategy for the LTC5552IUDB?
  The LTC5552IUDB has a thermal pad that should be connected to a solid ground plane to dissipate heat. A thermal interface material can be used to improve heat transfer between the device and the PCB. Additionally, ensuring good airflow and using a heat sink can help reduce the junction temperature.
