LTC5556IUH#PBF - Analog Devices

Description: RF Mixer IC General Purpose Down Converter 1.5GHz ~ 7GHz 32-QFN (5x5)

Download LTC5556IUH#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

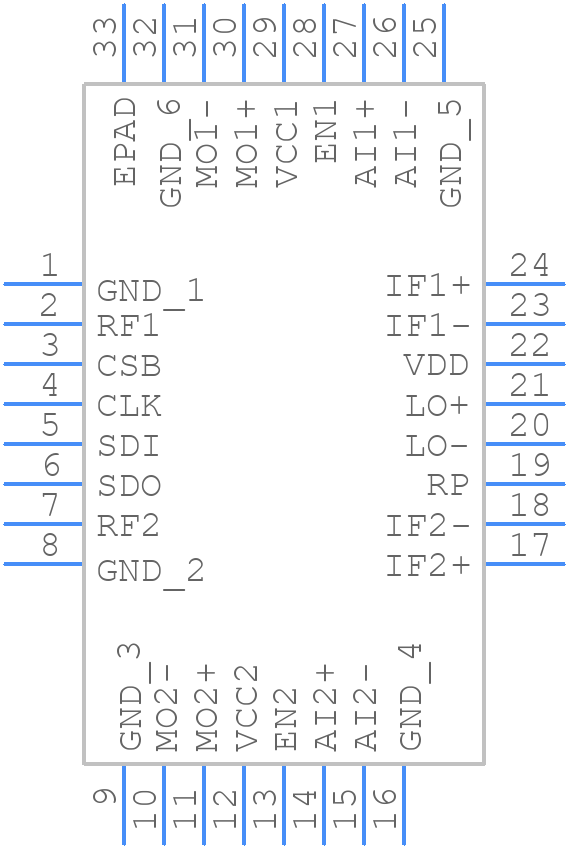

LTC5556IUH#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC5556IUH#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH (32-Lead QFN)
click to zoom
3D Models
LTC5556IUH#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UH (32-Lead QFN)
click to zoom

LTC5556IUH#PBF Details

  • Manufacturer Part Number:

    LTC5556IUH#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-05-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Characteristic Impedance:

    200 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    7000 MHz

  • Operating Frequency-Min:

    1500 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    SINGLE BALANCED

  • Supply Current-Max:

    450 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.92

LTC5556IUH#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC5556IUH involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended layout diagram that can be followed.
  • The input capacitor (CIN) should be a low-ESR ceramic capacitor with a value between 10nF to 100nF. The output capacitor (COUT) should be a low-ESR ceramic or film capacitor with a value between 100nF to 1uF. The capacitor values and types should be chosen based on the specific application requirements, such as output voltage ripple and transient response.
  • The LTC5556IUH has an operating temperature range of -40°C to 125°C. However, the device can be operated at a junction temperature (TJ) up to 150°C. It's essential to ensure that the device is operated within the specified temperature range to ensure reliable operation and prevent damage.
  • The LTC5556IUH requires a bias voltage (VCC) between 2.85V to 5.5V. The device should be configured according to the specific application requirements, such as output voltage, frequency, and power mode. The datasheet provides a detailed description of the device's configuration options and recommended settings.
  • To minimize EMI and EMC issues, it's essential to follow proper PCB layout and design practices, such as using a solid ground plane, keeping sensitive traces away from noisy traces, and using shielding and filtering components. Additionally, the LTC5556IUH has built-in EMI reduction features, such as spread spectrum clocking and low-EMI operation modes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC5556IUH#PBF Overview

Use the download button to access the LTC5556IUH#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC55, or try a keyword search, such as RF/Microwave Mixers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
