LTC5564IUD#PBF - Analog Devices

Description: IC RF DETECT 600MHZ-15GHZ 16QFN

Download LTC5564IUD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

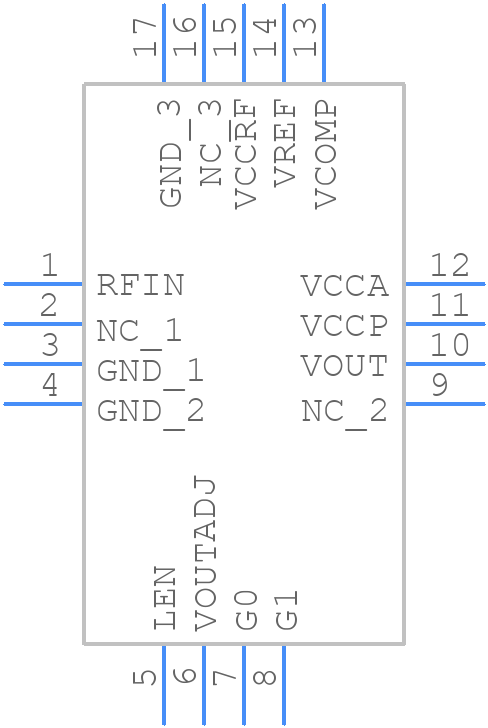

Symbol
LTC5564IUD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC5564IUD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LTC5564IUD#PBF
click to zoom
3D Models
LTC5564IUD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - LTC5564IUD#PBF
click to zoom

LTC5564IUD#PBF Details

  • Manufacturer Part Number:

    LTC5564IUD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1691

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC5564IUD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC5564 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the power supply. A 4-layer PCB with a dedicated ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 10nF to 100nF. The output capacitor should be a low-ESR ceramic or tantalum capacitor with a value between 10uF to 100uF. The capacitor values depend on the specific application and frequency of operation.
  • The maximum power dissipation of the LTC5564 is dependent on the package type and thermal resistance. For the IUD package, the maximum power dissipation is approximately 1.4W at 25°C ambient temperature.
  • To ensure stability, the LTC5564 requires a minimum output capacitance of 10uF and a minimum input capacitance of 10nF. Additionally, the device should be operated within the recommended voltage and current ranges, and the PCB layout should be designed to minimize parasitic inductance and capacitance.
  • Yes, the LTC5564 can be used in a switching regulator application. However, it is essential to ensure that the device is operated within its recommended frequency range and that the output filter is designed to minimize ringing and oscillation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC5564IUD#PBF Overview

Use the download button to access the LTC5564IUD#PBF schematic symbol, PCB footprint, and 3D model.
