LTC5566IUH#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC5566IUH#PBF - DOWNCONVERTING MIXER, 300MHZ-6GHZ, QFN32

Download LTC5566IUH#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

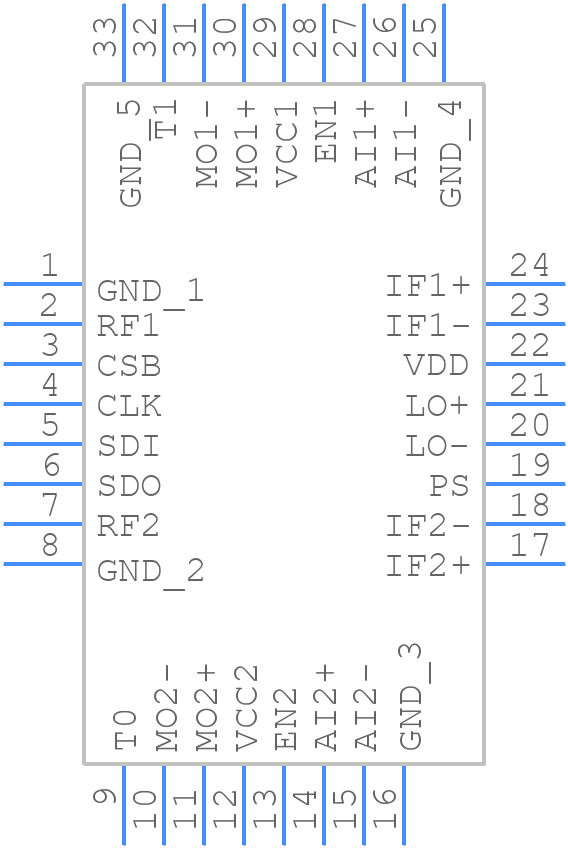

Symbol
LTC5566IUH#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC5566IUH#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH Package 32-Lead Plastic QFN (5mm × 5mm)
click to zoom
3D Models
LTC5566IUH#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UH Package 32-Lead Plastic QFN (5mm × 5mm)
click to zoom

LTC5566IUH#PBF Details

  • Manufacturer Part Number:

    LTC5566IUH#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Characteristic Impedance:

    300 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    300 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Supply Current-Max:

    450 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.92

LTC5566IUH#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC5566IUH involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended layout diagram that can be used as a starting point.
  • To ensure proper biasing, the LTC5566IUH requires a stable voltage supply, typically between 2.7V and 3.6V. The device also requires a bias current, typically around 10mA, which can be provided through a resistor divider network. The datasheet provides a recommended bias circuit diagram that can be used as a reference.
  • The maximum input power that the LTC5566IUH can handle is dependent on the frequency of operation and the impedance of the input signal. As a general rule, the device can handle input powers up to +10dBm. However, it's recommended to consult the datasheet and perform simulations to determine the maximum input power for a specific application.
  • Common issues with the LTC5566IUH can often be attributed to poor PCB layout, inadequate biasing, or improper input/output termination. To troubleshoot, start by verifying the PCB layout and bias circuit, then check the input and output signals for any signs of oscillation or instability. The datasheet provides a troubleshooting guide that can be used as a reference.
  • Yes, the LTC5566IUH can be used in a differential configuration. The device has a differential input stage that can be used to amplify differential signals. However, it's recommended to consult the datasheet and application notes for specific guidance on differential configuration and layout considerations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC5566IUH#PBF Overview

Use the download button to access the LTC5566IUH#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC55, or try a keyword search, such as RF/Microwave Mixers
