LTC5567IUF#PBF footprint, schematic symbol and 3D model by Analog Devices

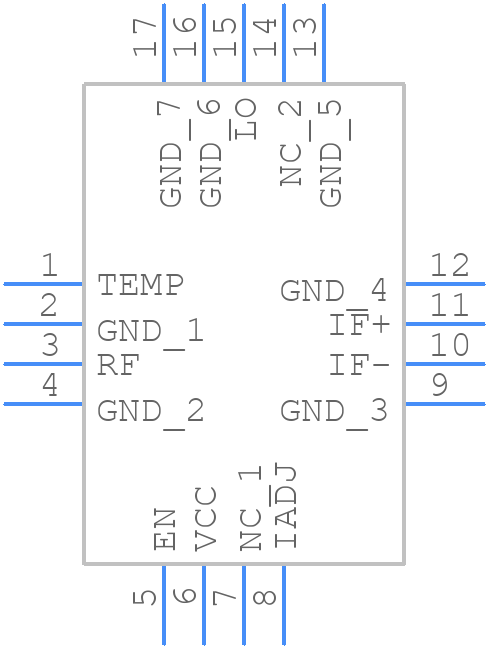

Symbol

click to zoom

PCB Footprints

LTC5567IUF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead Plastic QFN (4mm × 4mm)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTC5567IUF#PBF
Part Number LTC5567IUF#PBF
Manufacturer Analog Devices
Pin Count 17
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 16-Lead Plastic QFN (4mm × 4mm)
Released Date May 11, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LTC5567IUF#PBF Details

Manufacturer Part Number:
LTC5567IUF#PBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MO-220WGGC, QFN-16
Pin Count:
16
Manufacturer Package Code:
05-08-1692
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Input Power-Max (CW):
15 dBm
JESD-609 Code:
e3
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
16
Operating Frequency-Max:
4000 MHz
Operating Frequency-Min:
300 MHz
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
LCC16,.16SQ,25
Power Supplies:
3.3 V
RF/Microwave Device Type:
DOUBLE BALANCED
Supply Current-Max:
105 mA
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Matte Tin (Sn)

LTC5567IUF#PBF Frequently Asked Questions (FAQs)

A good PCB layout for the LTC5567 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
The output capacitor should be chosen based on the desired output impedance, ripple voltage, and ESR. A low-ESR capacitor with a value between 10uF to 100uF is recommended. The capacitor should also be rated for the maximum output voltage and have a low equivalent series resistance (ESR).
The maximum input power that the LTC5567 can handle depends on the input voltage and current. The device can handle up to 2W of input power, but this should be derated based on the ambient temperature and other environmental factors.
The LTC5567 can be synchronized with an external clock signal applied to the SYNC pin. The external clock frequency should be between 1MHz to 20MHz, and the signal should be a CMOS-compatible logic level.
The typical start-up time of the LTC5567 is around 100us, but this can vary depending on the input voltage, output load, and other factors. The device has a soft-start feature that helps to reduce the inrush current during start-up.

Trust Checks

Community Provided

System Verified

Community Approved

LTC5567IUF#PBF Overview

Use the download button to access the LTC5567IUF#PBF schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LTC55, or try a keyword search, such as RF/Microwave Mixers
