LTC5582HDD#PBF - Analog Devices

Description: IC RF DETECT 40MHZ-10GHZ 10DFN

Download LTC5582HDD#PBF Model

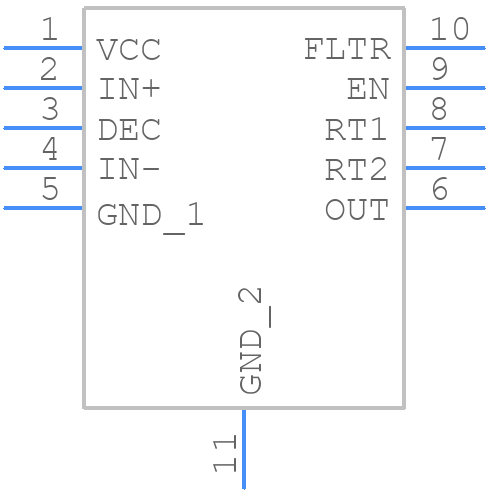

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC5582HDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Lead Plastic DFN (3mm × 3mm)-1
click to zoom
3D Models
LTC5582HDD#PBF - Analog Devices  - 3D model - Small Outline No-lead - 10-Lead Plastic DFN (3mm × 3mm)-1
click to zoom

LTC5582HDD#PBF Details

  • Manufacturer Part Number:

    LTC5582HDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    18 dBm

  • Input Power-Min (CW):

    18 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Max:

    10000 MHz

  • Operating Frequency-Min:

    40 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    POSITIVE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    LINEAR DETECTOR

  • Supply Current-Max:

    52 mA

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

LTC5582HDD#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling. Use a common mode choke or a ferrite bead to filter the input power.
  • The LTC5582HDD requires a bias voltage of 3.3V or 5V on the VCC pin. Ensure the bias voltage is stable and noise-free. A decoupling capacitor of 0.1uF or 1uF is recommended between VCC and GND.
  • The maximum input power that the LTC5582HDD can handle is 20dBm (100mW). Exceeding this limit may cause damage to the device or affect its performance.
  • The gain of the LTC5582HDD can be optimized by adjusting the value of the external resistor (Rgain) connected between the GAIN pin and GND. A smaller Rgain value increases the gain, while a larger value decreases it.
  • The recommended operating temperature range for the LTC5582HDD is -40°C to 85°C. Operating the device outside this range may affect its performance or reliability.
