LTC5582IDD#PBF - Analog Devices

Description: RF Detector 40MHz to 10GHz RMS Pwr Detector w/ 57dB

Download LTC5582IDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

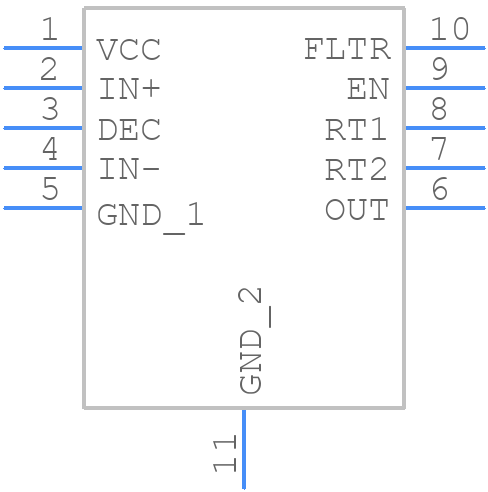

Symbol
LTC5582IDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC5582IDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LTC5582IDD#PBFAa
click to zoom
3D Models
LTC5582IDD#PBF - Analog Devices - 3D model - Small Outline No-lead - LTC5582IDD#PBFAa
click to zoom

LTC5582IDD#PBF Details

  • Manufacturer Part Number:

    LTC5582IDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    24 dBm

  • Input Power-Min (CW):

    18 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Max:

    10000 MHz

  • Operating Frequency-Min:

    40 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    POSITIVE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    LINEAR DETECTOR

  • Supply Current-Max:

    52 mA

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

LTC5582IDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC5582IDD#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the antenna. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog ground and another for the digital ground.
  • To optimize the performance of the LTC5582IDD#PBF in a high-temperature environment, ensure good thermal management by providing adequate heat sinking and airflow. Also, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
  • The recommended power-up sequence for the LTC5582IDD#PBF is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the enable signal (EN). This sequence helps prevent damage or malfunction.
  • To troubleshoot issues with the LTC5582IDD#PBF, start by verifying the power supply voltages and ensuring that the device is properly configured. Then, use a logic analyzer or oscilloscope to monitor the device's output and input signals. Check the datasheet for specific troubleshooting guidelines and consult with Analog Devices' support resources if needed.
  • To ensure EMC when using the LTC5582IDD#PBF, consider using a shielded enclosure, minimizing loop areas in the PCB layout, and using filters or chokes to reduce electromagnetic interference (EMI). Additionally, ensure that the device is properly grounded and that the PCB is designed to minimize radiation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC5582IDD#PBF Overview

Use the download button to access the LTC5582IDD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC55, or try a keyword search, such as RF/Microwave Detectors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
