LTC5585IUF#PBF - Analog Devices

Description: Modulator / Demodulator Wideb& IQ Demodulator w/ IIP2 & DC Offse

Download LTC5585IUF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

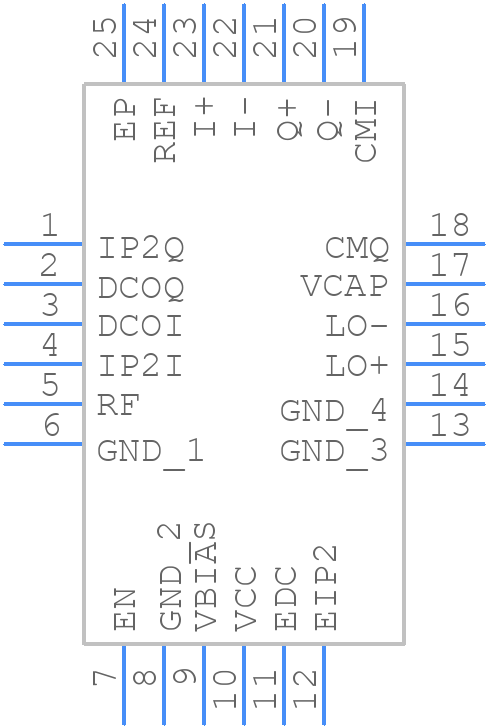

LTC5585IUF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC5585IUF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead Plastic QFN (4mm × 4mm)
click to zoom
3D Models
LTC5585IUF#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 24-Lead Plastic QFN (4mm × 4mm)
click to zoom

LTC5585IUF#PBF Details

  • Manufacturer Part Number:

    LTC5585IUF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1697

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    MODEM-DEMODULATOR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LTC5585IUF#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling. Use a common mode choke or a ferrite bead to filter the input power.
  • Ensure the VCC pin is connected to a stable voltage source between 2.7V and 5.5V. The VBIAS pin should be connected to a voltage source between 2.7V and 5.5V, or tied to VCC through a resistor divider to set the desired bias point.
  • The maximum input power is limited by the package thermal resistance and the maximum junction temperature. As a general guideline, the maximum input power should not exceed 1W. However, this can be increased with proper heat sinking and thermal management.
  • Use the internal matching network to optimize the device for a specific frequency band. The internal matching network can be tuned by adjusting the values of the external components R1, R2, and C1. Use the ADI's Filter Wizard tool or consult the application note AN137 for guidance.
  • Use a TVS (Transient Voltage Suppressor) diode or a zener diode with a voltage rating greater than the maximum input voltage to protect the device from ESD events. Ensure the ESD protection device is connected as close as possible to the input pins.
