LTC5590IUH#TRPBF - Analog Devices

Description: Dual 600MHz to 1.7GHz High Dynamic Range Downconverting Mixer

Download LTC5590IUH#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

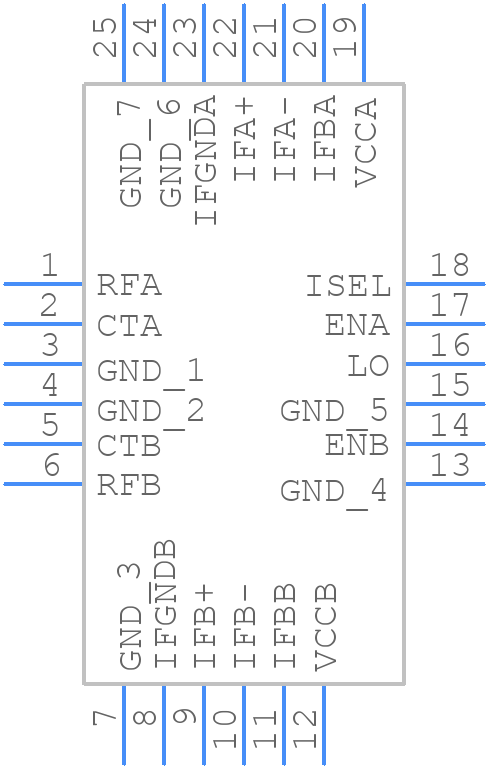

LTC5590IUH#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC5590IUH#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH Package 24-Lead Plastic QFN (5mm × 5mm)
click to zoom
3D Models
LTC5590IUH#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - UH Package 24-Lead Plastic QFN (5mm × 5mm)
click to zoom

LTC5590IUH#TRPBF Details

  • Manufacturer Part Number:

    LTC5590IUH#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 5 MM, LEAD FREE, PLASTIC, QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1747

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    RF FRONT END CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC5590IUH#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC5590IUH#TRPBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the antenna. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The choice of external components, such as the input and output matching networks, depends on the specific application and frequency band of operation. Analog Devices provides a set of recommended component values in the datasheet, but these may need to be optimized for the specific use case. Engineers can use simulation tools and impedance matching software to determine the optimal component values.
  • The maximum power handling capability of the LTC5590IUH#TRPBF is not explicitly stated in the datasheet, but it can be inferred from the device's output power compression characteristics. The device can handle input powers up to +10dBm, but the output power will start to compress above +5dBm. Engineers should ensure that the device is operated within its recommended power range to maintain optimal performance and prevent damage.
  • Troubleshooting common issues with the LTC5590IUH#TRPBF involves a systematic approach to identify the root cause of the problem. Engineers should check the device's input and output matching networks, ensure that the device is properly biased, and verify that the device is operating within its recommended temperature range. Additionally, engineers can use tools such as spectrum analyzers and oscilloscopes to diagnose issues with the device's output signal.
  • The LTC5590IUH#TRPBF is a high-power device that requires proper thermal management to prevent overheating. Engineers should ensure that the device is mounted on a heat sink or thermal pad, and that the PCB is designed to dissipate heat efficiently. The device's junction temperature should be kept below 150°C to prevent damage and ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC5590IUH#TRPBF Overview

Use the download button to access the LTC5590IUH#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC55, or try a keyword search, such as Cellular Telephone Circuits
