LTC5591IUH#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC5591IUH#PBF - RF Downconverter Mixer IC, 3.1 V to 3.5 V, 1.3 GHz to 2.3 GHz, QFN-24

Download LTC5591IUH#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

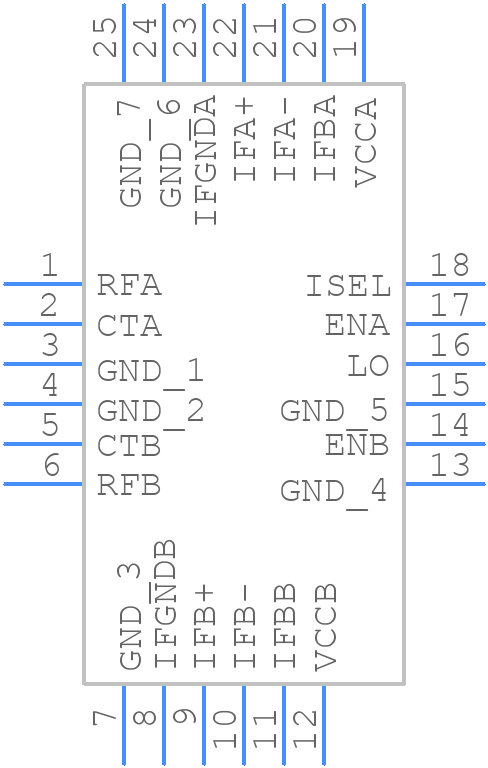

LTC5591IUH#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC5591IUH#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH Package 24-Lead Plastic QFN (5mm × 5mm)
click to zoom
3D Models
LTC5591IUH#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UH Package 24-Lead Plastic QFN (5mm × 5mm)
click to zoom

LTC5591IUH#PBF Details

  • Manufacturer Part Number:

    LTC5591IUH#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 5 MM, LEAD FREE, PLASTIC, QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1747

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC5591IUH#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC5591IUH involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure proper biasing, the LTC5591IUH requires a single 3.3V or 5V supply, and the input pins (VIN+ and VIN-) should be biased to a common-mode voltage of 1.5V to 2.5V. The output common-mode voltage should be set to the same voltage as the input common-mode voltage. Additionally, the datasheet provides a detailed biasing diagram that should be followed.
  • The maximum input signal amplitude that the LTC5591IUH can handle is ±1.4Vpp differential, or ±2.8Vpp single-ended. Exceeding this amplitude may result in distortion, clipping, or damage to the device.
  • To filter out noise and interference, a low-pass filter can be added to the output of the LTC5591IUH. A simple RC filter with a cutoff frequency of 100MHz to 200MHz can be effective in reducing high-frequency noise. Additionally, shielding the device and using a ground plane can help reduce electromagnetic interference.
  • The typical power consumption of the LTC5591IUH is 140mW at 3.3V supply and 240mW at 5V supply, with a 100MHz input signal. However, power consumption can vary depending on the input signal frequency, amplitude, and output load.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC5591IUH#PBF Overview

Use the download button to access the LTC5591IUH#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC55, or try a keyword search, such as Cellular Telephone Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
