LTC5594IUH#PBF - Analog Devices

Description: Modulator / Demodulator 300MHz to 9GHz High Linearity I/Q demodulator with Wideband IF Amplifier

Download LTC5594IUH#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

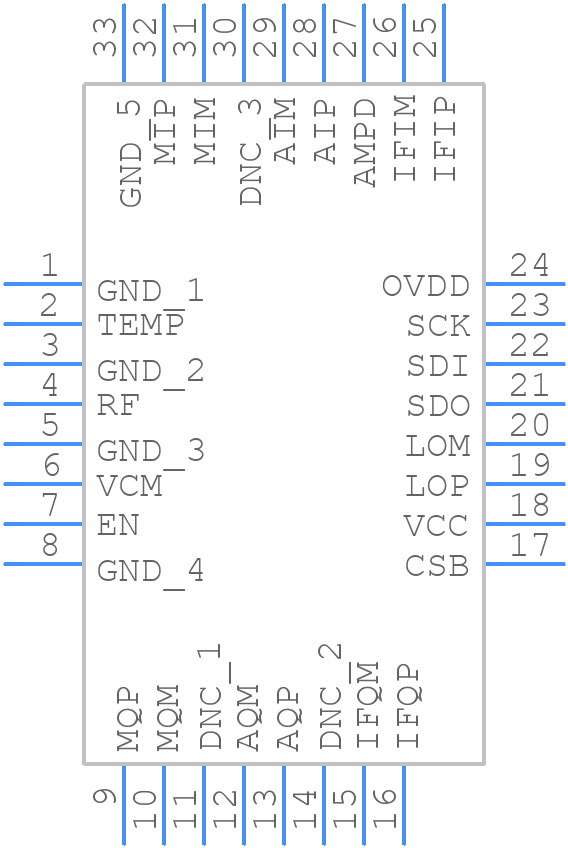

LTC5594IUH#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC5594IUH#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH (32-Lead QFN)
click to zoom
3D Models
LTC5594IUH#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UH (32-Lead QFN)
click to zoom

LTC5594IUH#PBF Details

  • Manufacturer Part Number:

    LTC5594IUH#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-01-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LTC5594IUH#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling. Use a common mode choke or a ferrite bead to filter the input power.
  • Ensure the VCC pin is biased to a stable voltage between 4.75V to 5.25V. The VBIAS pin should be connected to a quiet, low-impedance voltage source, such as a voltage regulator or a filtered voltage reference.
  • The maximum input power is limited by the device's thermal characteristics. Ensure the junction temperature (TJ) does not exceed 150°C. For a typical application, the input power should be limited to 10dBm (10mW) or less.
  • Use the internal matching network to optimize the device for a specific frequency band. The internal matching network can be adjusted by modifying the values of the external components R1, R2, and C1. Refer to the datasheet for more information.
  • Use a TVS (Transient Voltage Suppressor) diode or a zener diode with a voltage rating of 5.5V or higher to protect the device from ESD events. Ensure the ESD protection device is connected between the input pins and the ground plane.
