LTC5594IUH#TRPBF - Analog Devices

Description: Modulator / Demodulator 300MHz to 9GHz Hi Linity I/Q Demodulator

Download LTC5594IUH#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

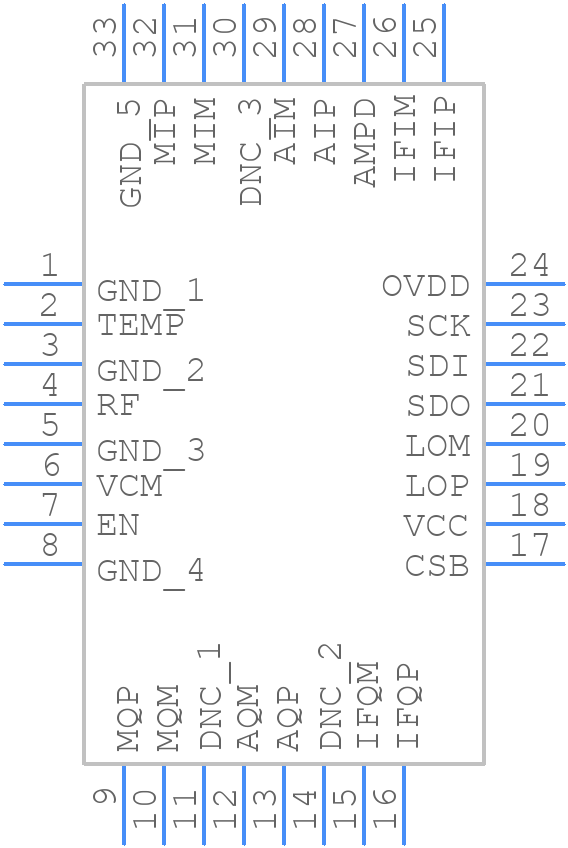

LTC5594IUH#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC5594IUH#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH Package 32-Lead Plastic QFN (5mm × 5mm)
click to zoom
3D Models
LTC5594IUH#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - UH Package 32-Lead Plastic QFN (5mm × 5mm)
click to zoom

LTC5594IUH#TRPBF Details

  • Manufacturer Part Number:

    LTC5594IUH#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-01-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LTC5594IUH#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC5594IUH#TRPBF involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN137 for more details.
  • The LTC5594IUH#TRPBF requires a single 3.3V or 5V power supply. Ensure that the power supply is clean and well-regulated. The device has an internal power-on reset circuit, so no external reset circuit is required. However, it's recommended to add a 10kΩ pull-up resistor on the EN pin to ensure proper enablement.
  • The LTC5594IUH#TRPBF can support data rates up to 6.4Gbps. However, the actual data rate achievable depends on the specific application, PCB layout, and signal integrity. It's recommended to perform signal integrity analysis and simulation to ensure reliable data transmission.
  • To troubleshoot issues with the LTC5594IUH#TRPBF, use a combination of tools such as oscilloscopes, logic analyzers, and signal integrity software. Check for signal reflections, ringing, and jitter. Verify that the device is properly powered and configured. Also, check for any layout or routing issues on the PCB.
  • The LTC5594IUH#TRPBF has a maximum junction temperature of 150°C. To ensure reliable operation, keep the device temperature below 125°C. Use thermal vias and thermal pads on the PCB to dissipate heat. In high-temperature applications, consider using a heat sink or thermal interface material.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC5594IUH#TRPBF Overview

Use the download button to access the LTC5594IUH#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC55, or try a keyword search, such as Cellular Telephone Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
