LTC5599IUF#PBF - Analog Devices

Description: Modulator / Demodulator 30MHz to 1300MHz L Pwr Direct 4xrature M

Download LTC5599IUF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

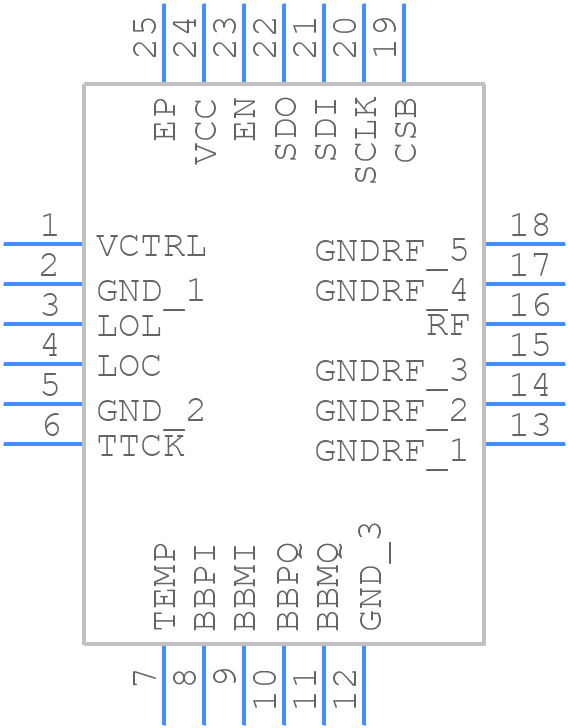

LTC5599IUF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC5599IUF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UF Package 24-Lead Plastic QFN (4mm × 4mm) (Reference LTC DWG # 05-08-1697 Rev B)
click to zoom
3D Models
LTC5599IUF#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UF Package 24-Lead Plastic QFN (4mm × 4mm) (Reference LTC DWG # 05-08-1697 Rev B)
click to zoom

LTC5599IUF#PBF Details

  • Manufacturer Part Number:

    LTC5599IUF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, LEAD FREE, PLASTIC, QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1697

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC5599IUF#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling. Use a common mode choke or a ferrite bead to filter the input power.
  • Ensure the VCC pin is biased to a stable voltage between 4.75V to 5.25V. The VBIAS pin should be biased to a voltage between 2.5V to 3.5V, with a recommended value of 3V. Use a low-noise, low-dropout regulator to power the VCC and VBIAS pins.
  • The maximum input power that the LTC5599 can handle is +10dBm (10mW). Exceeding this power may cause compression or damage to the device.
  • Use the internal matching network to optimize the LTC5599 for a specific frequency band. The internal matching network consists of a series inductor and a shunt capacitor. Adjust the values of these components to match the impedance of the input signal to the device.
  • The recommended operating temperature range for the LTC5599 is -40°C to +85°C. Operating the device outside this range may affect its performance and reliability.
