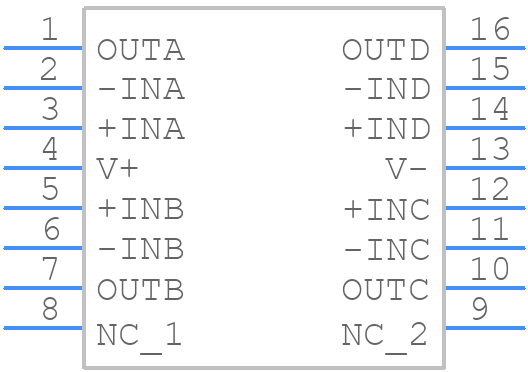

LTC6079CGN#PBF - Analog Devices

LTC6079CGN#PBF Details

• Manufacturer Part Number:

  LTC6079CGN#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  0.150 INCH, LEAD FREE, PLASTIC, SSOP-16

• Pin Count:

  16

• Manufacturer Package Code:

  05-08-1641 (GN16)

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.00005 µA

• Bias Current-Max (IIB) @25C:

  0.000001 µA

• Common-mode Reject Ratio-Min:

  88 dB

• Common-mode Reject Ratio-Nom:

  102 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  115 µV

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e3

• Length:

  4.8895 mm

• Low-Bias:

  YES

• Low-Offset:

  YES

• Micropower:

  YES

• Moisture Sensitivity Level:

  1

• Number of Functions:

  4

• Number of Terminals:

  16

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Power:

  YES

• Programmable Power:

  NO

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.75 mm

• Slew Rate-Nom:

  0.05 V/us

• Supply Current-Max:

  0.312 mA

• Supply Voltage Limit-Max:

  6 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.635 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Unity Gain BW-Nom:

  750

• Voltage Gain-Min:

  562341.32

• Wideband:

  NO

• Width:

  3.899 mm
