Part Image

LTC6088HDHC#PBF - Analog Devices

Description: OP Amp Quad GP R-R I/O 5.5V Automotive 16-Pin DFN EP

Download LTC6088HDHC#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

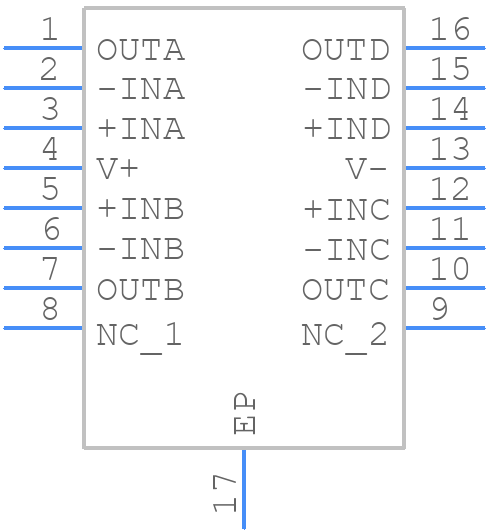

Symbol
LTC6088HDHC#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6088HDHC#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DHC DFN-5X3
click to zoom
3D Models
LTC6088HDHC#PBF - Analog Devices - 3D model - Small Outline No-lead - DHC DFN-5X3
click to zoom

LTC6088HDHC#PBF Details

  • Manufacturer Part Number:

    LTC6088HDHC#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1706

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0005 µA

  • Bias Current-Max (IIB) @25C:

    0.001 µA

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1600 µV

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC16,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    7.2 V/us

  • Supply Current-Max:

    4.2 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    14000

  • Voltage Gain-Min:

    30000

  • Wideband:

    NO

  • Width:

    3 mm

LTC6088HDHC#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6088 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog ground plane and to keep digital signals away from the analog signals.
  • The input and output capacitors should be chosen based on the operating frequency, output voltage, and output current of the application. A general rule of thumb is to use low-ESR capacitors with a value of 10uF to 22uF for the input capacitor and 10uF to 47uF for the output capacitor. The capacitor voltage rating should be at least 1.5 times the maximum output voltage.
  • The LTC6088 can operate at ambient temperatures up to 125°C, but the maximum junction temperature should not exceed 150°C. It's recommended to use a heat sink or thermal pad to ensure proper heat dissipation, especially in high-power applications.
  • Yes, the LTC6088 is available in a variety of grades, including the HD grade, which is suitable for high-reliability and aerospace applications. The HD grade has a wider operating temperature range and is screened to tighter specifications than the standard grade.
  • To ensure EMC with the LTC6088, it's recommended to use a shielded enclosure, keep the input and output cables short and away from each other, and use ferrite beads or common-mode chokes to filter out electromagnetic interference (EMI). Additionally, the PCB layout should be designed to minimize radiation and susceptibility to EMI.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6088HDHC#PBF Overview

Use the download button to access the LTC6088HDHC#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC60, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
