Part Image

LTC6090CS8E-5#TRPBF - Analog Devices

Description: Operational Amplifiers - Op Amps 140V RROut CMOS Op Amp Av>=5

Download LTC6090CS8E-5#TRPBF Model

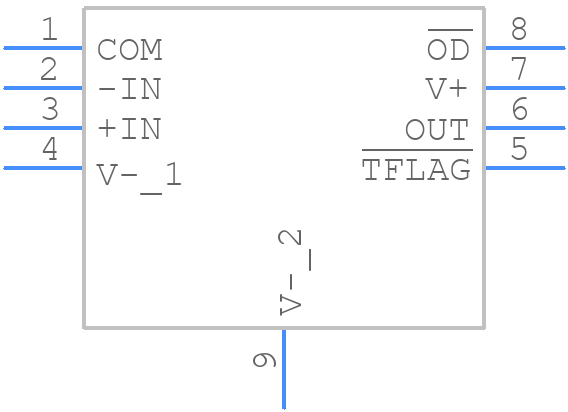

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC6090CS8E-5#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8E Package 8-Lead Plastic SOIC (Narrow .150 Inch)
click to zoom
3D Models
LTC6090CS8E-5#TRPBF - Analog Devices  - 3D model - Small Outline Packages - S8E Package 8-Lead Plastic SOIC (Narrow .150 Inch)
click to zoom

LTC6090CS8E-5#TRPBF Details

  • Manufacturer Part Number:

    LTC6090CS8E-5#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1857

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00005 µA

  • Common-mode Reject Ratio-Min:

    126 dB

  • Common-mode Reject Ratio-Nom:

    140 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1250 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -75 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.752 mm

  • Slew Rate-Min:

    18 V/us

  • Slew Rate-Nom:

    37 V/us

  • Supply Current-Max:

    4.3 mA

  • Supply Voltage Limit-Max:

    75 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    24000

  • Voltage Gain-Min:

    1000000

  • Wideband:

    YES

  • Width:

    3.899 mm

LTC6090CS8E-5#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the LTC6090CS8E-5's performance. Analog Devices recommends a 4-layer board with a solid ground plane, and to keep the input and output traces short and separate. Additionally, decoupling capacitors should be placed close to the device.
  • The choice of input and output capacitors depends on the specific application. For the LTC6090CS8E-5, a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10uF to 22uF is recommended for the input capacitor. For the output capacitor, a low-ESR ceramic or tantalum capacitor with a value of 10uF to 47uF is suitable. The capacitor's voltage rating should be at least 1.5 times the maximum output voltage.
  • The LTC6090CS8E-5 is rated for operation up to 125°C ambient temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 100°C to ensure the device's internal junction temperature remains within its specified limit.
  • To protect the LTC6090CS8E-5 from overvoltage and undervoltage conditions, it's recommended to use a voltage supervisor or a reset IC that can detect and respond to voltage faults. Additionally, a TVS (transient voltage suppressor) diode can be used to protect the device from voltage transients and spikes.
  • The recommended startup sequence for the LTC6090CS8E-5 is to first apply the input voltage, followed by the enable signal (EN). This ensures that the device's internal biasing and regulation circuits are properly initialized before the output voltage is enabled.
