LTC6090IFE-5#PBF - Analog Devices

Description: Op Amp Single Precision Amplifier R-R O/P ±70V/140V Automotive 16-Pin TSSOP EP Tube

Download LTC6090IFE-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

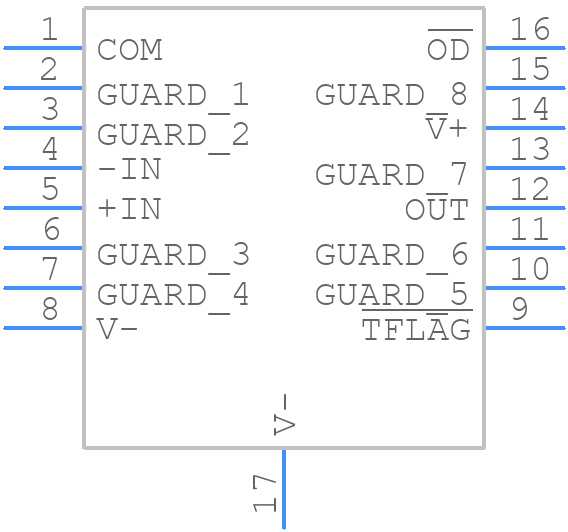

LTC6090IFE-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6090IFE-5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Plastic TSSOP (4.4mm)
click to zoom
3D Models
LTC6090IFE-5#PBF - Analog Devices - 3D model - Small Outline Packages - 16-Lead Plastic TSSOP (4.4mm)
click to zoom

LTC6090IFE-5#PBF Details

  • Manufacturer Part Number:

    LTC6090IFE-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, TSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1663 (BA)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00005 µA

  • Common-mode Reject Ratio-Min:

    126 dB

  • Common-mode Reject Ratio-Nom:

    140 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1250 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -75 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    18 V/us

  • Slew Rate-Nom:

    37 V/us

  • Supply Current-Max:

    4.3 mA

  • Supply Voltage Limit-Max:

    75 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    24000

  • Voltage Gain-Min:

    1000000

  • Wideband:

    YES

  • Width:

    4.4 mm

LTC6090IFE-5#PBF Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the LTC6090IFE-5#PBF is dependent on the operating temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C with a thermal resistance of 90°C/W. However, it's recommended to consult the thermal management section of the datasheet for more information.
  • To minimize noise and ensure optimal performance, it's recommended to follow the PCB layout guidelines provided in the datasheet. This includes keeping the input and output traces separate, using a solid ground plane, and placing the device close to the bypass capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The recommended input capacitor value and type for the LTC6090IFE-5#PBF is a 10uF to 22uF X5R or X7R ceramic capacitor. This type of capacitor is recommended due to its low equivalent series resistance (ESR) and high ripple current capability.
  • The LTC6090IFE-5#PBF is rated for operation from -40°C to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's recommended to consult the datasheet and the application notes for more information on high-temperature operation.
  • To protect the LTC6090IFE-5#PBF from overvoltage and undervoltage conditions, it's recommended to use a voltage supervisor or a reset IC that can detect and respond to out-of-range voltage conditions. Additionally, it's recommended to use a TVS diode or a zener diode to clamp the input voltage to a safe level.
