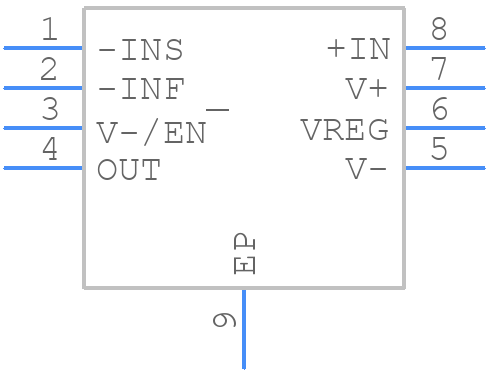

LTC6102HVIDD#PBF - Analog Devices

LTC6102HVIDD#PBF Details

• Manufacturer Part Number:

  LTC6102HVIDD#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  8

• Manufacturer Package Code:

  05-08-1698

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.02 µA

• Bias Current-Max (IIB) @25C:

  0.02 µA

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  50 µV

• JESD-30 Code:

  S-PDSO-N8

• JESD-609 Code:

  e3

• Length:

  3 mm

• Low-Bias:

  NO

• Low-Offset:

  YES

• Micropower:

  NO

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.11,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  0.8 mm

• Supply Current-Max:

  0.675 mA

• Supply Voltage Limit-Max:

  105 V

• Supply Voltage-Nom (Vsup):

  12 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Unity Gain BW-Nom:

  200

• Wideband:

  NO

• Width:

  3 mm
