LTC6102HVIMS8#TRPBF - Analog Devices

Description: Current Sense Amplifiers High Voltage, Zero-Drift current Sense Amplifier

Download LTC6102HVIMS8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

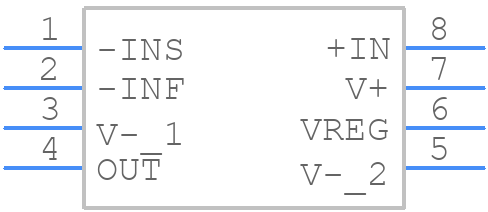

LTC6102HVIMS8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6102HVIMS8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom
3D Models
LTC6102HVIMS8#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom

LTC6102HVIMS8#TRPBF Details

  • Manufacturer Part Number:

    LTC6102HVIMS8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    CURRENT-SHUNT

  • Bandwidth (3dB)-Nom:

    0.2 MHz

  • Common Mode Voltage-Max:

    100 V

  • Input Offset Voltage-Max:

    50 µV

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.65 mA

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC6102HVIMS8#TRPBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LTC6102HVIMS8#TRPBF is -40°C to 125°C, as specified in the datasheet. However, it's recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal shutdown.
  • To ensure proper biasing, follow the recommended voltage and current settings outlined in the datasheet. Typically, this involves setting the input voltage (VIN) to a stable voltage source between 2.7V and 36V, and ensuring the output voltage (VOUT) is within the specified range. Additionally, ensure the device is properly decoupled with capacitors and resistors as recommended in the datasheet.
  • For optimal performance, follow the recommended PCB layout guidelines in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths. Additionally, consider using a 4-layer PCB with a dedicated power plane and a separate ground plane to reduce noise and EMI.
  • To troubleshoot common issues, start by verifying the device is properly biased and configured according to the datasheet. Check for proper decoupling, correct component values, and ensure the input and output capacitors are of sufficient value and type. If issues persist, consult the datasheet's troubleshooting section or contact Analog Devices' technical support for further assistance.
  • The LTC6102HVIMS8#TRPBF is a high-voltage, low-dropout linear regulator with a wide input voltage range and high output current capability. Compared to other similar devices, it offers a unique combination of high voltage tolerance, low dropout voltage, and high output current. Consult the datasheet and Analog Devices' product selection guide to determine the best device for your specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6102HVIMS8#TRPBF Overview

Use the download button to access the LTC6102HVIMS8#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC61, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
