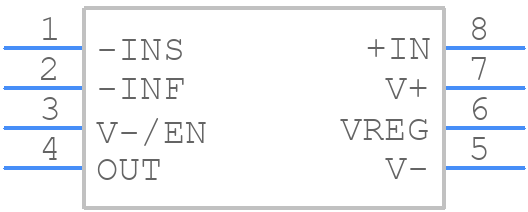

Symbol
LTC6102IMS8-1#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6102IMS8-1#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS-08-1
click to zoom
3D Models
LTC6102IMS8-1#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS-08-1
click to zoom

LTC6102IMS8-1#TRPBF Details

  • Manufacturer Part Number:

    LTC6102IMS8-1#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    CURRENT-SHUNT

  • Bandwidth (3dB)-Nom:

    0.2 MHz

  • Common Mode Voltage-Max:

    60 V

  • Input Offset Voltage-Max:

    50 µV

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.65 mA

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC6102IMS8-1#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6102IMS8-1#TRPBF involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the input bypass capacitor. Additionally, it's recommended to use a Kelvin connection for the sense pins to minimize noise.
  • The input capacitor should be a low-ESR ceramic capacitor with a value of at least 10uF, while the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value of at least 22uF. The capacitor selection also depends on the specific application requirements, such as ripple current and voltage rating.
  • The LTC6102IMS8-1#TRPBF can operate in an ambient temperature range of -40°C to 125°C, but the maximum junction temperature should not exceed 150°C. It's recommended to use thermal management techniques, such as heat sinks or thermal pads, to keep the device temperature within the specified range.
  • To ensure stable and reliable operation, it's recommended to follow the datasheet guidelines for input and output voltage ranges, current limits, and thermal management. Additionally, it's important to use a stable and regulated input voltage, and to avoid overloading the device or exceeding its specified ratings.
  • The LTC6102IMS8-1#TRPBF is a high-voltage, low-dropout linear regulator that is commonly used in applications such as industrial power supplies, medical devices, and automotive systems. It's also used in battery-powered devices, such as portable medical equipment and ruggedized handheld devices.
